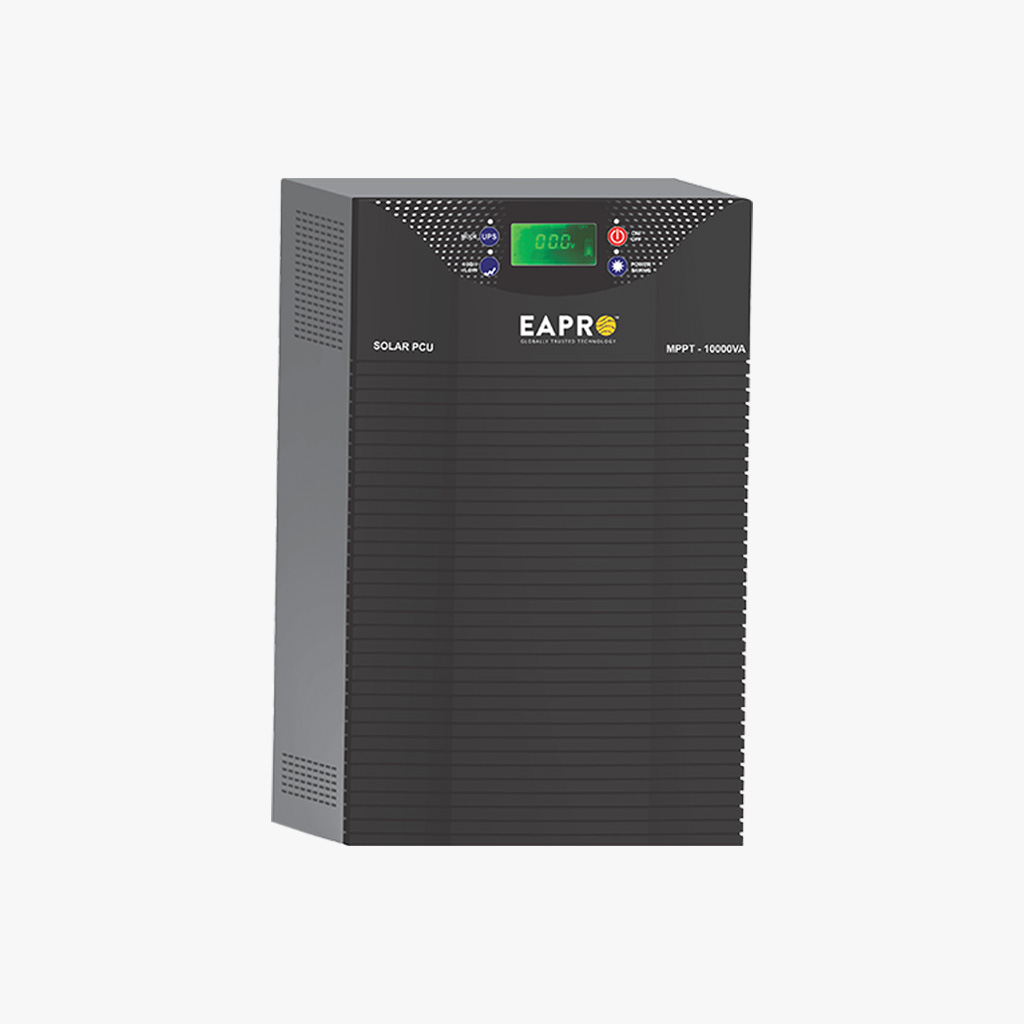

EAPRO 10 KVA/120V MPPT Solar Hybrid PCU

Type

Select Quantity

Manufacturer
Eapro

Eapro Global Ltd

Founded

2012

Headquarter

India

Solartrade Partner
Product Description
  • Rated AC power - 10000VA
  • Max Supported Panel Power - 9520 Wp, Input Voltage Range (Vmp) - 160V to 280V
  • Charge Controller – MPPT, Input Voltage (Voc) - 350 V
  • Nominal Battery Bank Voltage – 120V (Supports 10 Batteries)
  • 24 Months Warranty
  • Provision for the setting of critical parameters as per user requirement like Time, Boost Battery Voltage, Solar Max charging current, Battery Low Cut voltage etc.
  • Efficient Current Charging at Low Mains in Normal Mode only.
  • Intelligent Battery Charging and Charge Sharing with Mains/Charging by solar power only.
  • Dual Charging current option for Normal Charging and High Charging
  • High Power new generation MOSFET capable of handling high inrush/surge current.
  • Intelligent Multicolour LCD display for all system parameters
  • Programmed inbuilt cooling fan.
  • Inbuilt fully regulated charge controller.
Capacity (VA) 10000VA
Nominal battery voltage (Vdc) 120V
Charge Controller Type MPPT
Charge Controller Rating 8000W
Maximum PV Power in input 9520W
Max Efficiency above 98 %
Number of input channel Dual
Rated Output Power (VA) 10000VA
Max. DC Input Voltage (V) 350V
MPPT Efficiency above 98 %
Max Input Strings Number 4 (two string in parellel to every Channel)
Dimensions (L*W*H) [IN mm] 598*491*795
Input Voltage Range (Vmp) 280 V
Input Voltage Range (Voc) 350 V
No. of Panels 28 (@320 W)
