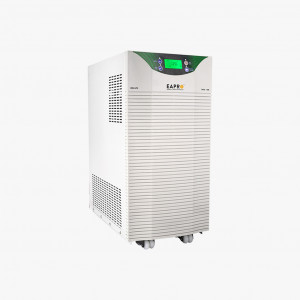

EAPRO 10 KVA/180V PWM Off-Grid Solar Inverter
For Solar Installers / EPC Only
Eapro Global Ltd
- Rated AC power: 10KVA, 120V/180V
- Operating Voltage 100V-280V
- Provision for the setting of critical parameters as per user requirement, like, Time, Boost Battery Voltage, Solar Max charging current, Battery Low Cut voltage etc
- Max supported panel power: 120V/180V up to 12000Wp
- Charge Controller Rating – 70A/120V-50A/180V, with 98% efficiency for fast charging
- 24 Months Warranty
- Efficient Current Charging at Low Mains in Normal Mode only.
- Intelligent Battery Charging and Charge Sharing with Mains/Charging by solar power only.
- Dual Charging current option for Normal Charging and High Charging
- High Power new generation MOSFET capable of handling high inrush/surge current.
- Intelligent Multicolour LCD display for all system parameters
- Programmed inbuilt cooling fan.
- Inbuilt fully regulated charge controller.
|Nominal battery voltage (VDC)||120V/180V|
|Charge Controller Type||PWM|
|Charge Controller Rating||70A/120V-50A/180V|
|Maximum PV Power||12000Wp|
|Rated Output Power (KVA)||10KVA|
|Input Voltage Range (Voc)||216V/324V|
|Input Voltage Range (Vmp)||145V-170V/218V-255V|
|Battery Boost volatage (Adjustable)||14.4V (Default setting)|
|Battery Low Cut (Adjustable)||10.6V (Default setting)|
|Grid charging current(Adjustable)||20A/16A (Default setting)|
|Solar Charging Current(Adjustable)||40A (Default setting)|
|Dimensions (L*W*H) [mm]||530*370*620 mm (Net Weight 67.28 Kg/70.53Kg)|
|Supported Battery Types||Flat,Tubular, VRLA(SMF)|
