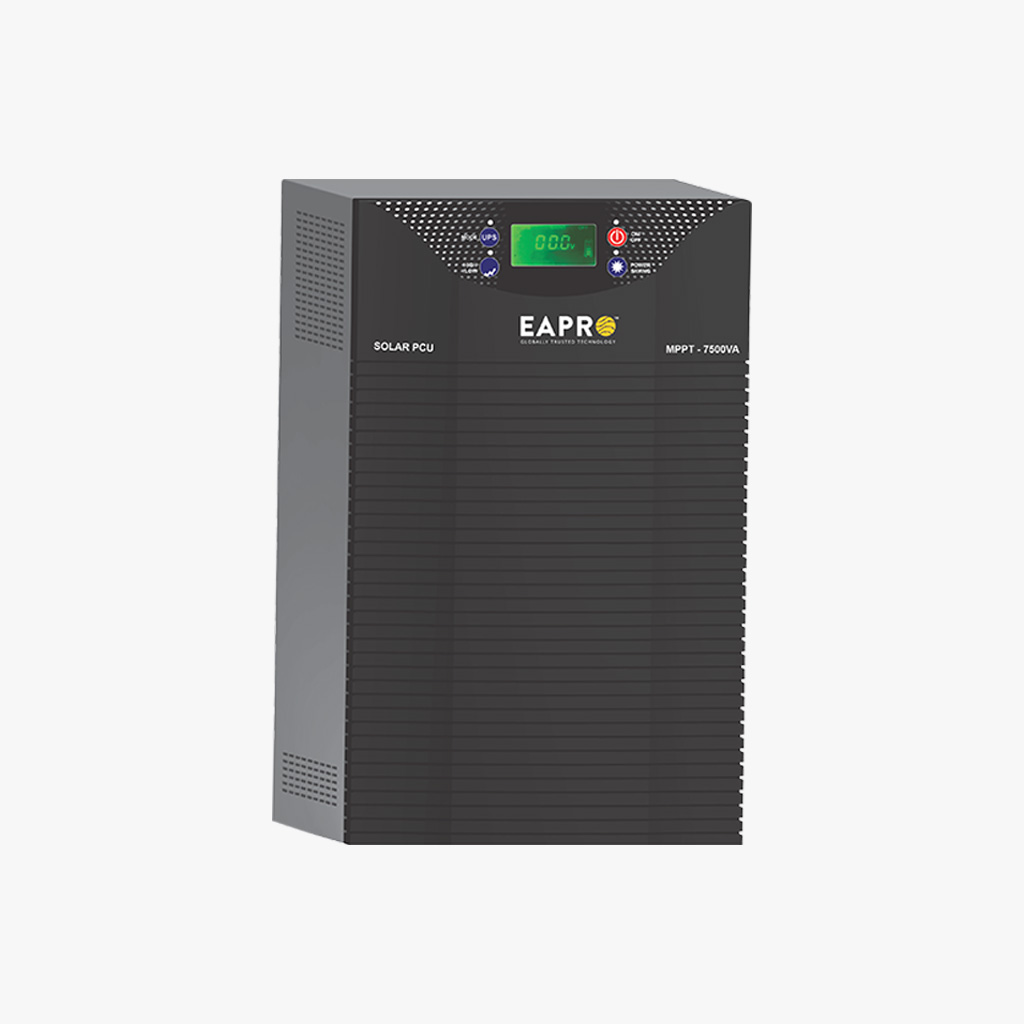

EAPRO 7.5 KVA/120V MPPT Solar Hybrid PCU

EAPRO 7.5 KVA/120V MPPT Solar Hybrid PCU

Brand: EAPRO

Category: Solar Inverter

Approximate Price

₹ 60,929

plus 12% GST

Solar Business Get Additional Discount

Install Solartrade App Today

Solartrade app

Become Our Channel Partner

Grow Your Solar Business or Start New

Product Description

  • Rated AC power - 7500VA
  • Max Supported Panel Power - 7680 Wp, Input Voltage Range (Vmp) - 160V to 230V
  • Charge Controller – MPPT, Max Input Voltage (Voc) - 280 V
  • Nominal Battery Bank Voltage – 120V (Supports 10 Batteries)
  • 24 Months Warranty
  • Provision for the setting of critical parameters as per user requirement like Time, Boost Battery Voltage, Solar Max charging current, Battery Low Cut voltage etc.
  • Efficient Current Charging at Low Mains in Normal Mode only.
  • Intelligent Battery Charging and Charge Sharing with Mains/Charging by solar power only.
  • Dual Charging current option for Normal Charging and High Charging
  • High Power new generation MOSFET capable of handling high inrush/surge current.
  • Intelligent Multicolour LCD display for all system parameters
  • Programmed inbuilt cooling fan.

Technical Description

Capacity (VA) 7500VA
Nominal battery voltage (Vdc) 120 V
Charge Controller Type MPPT
Charge Controller Rating 6000W
Maximum PV Power in input 7680W
Max Efficiency above 98 %
Number of input channel DUAL
Rated Output Power (VA) 7500VA
Max. DC Input Voltage (V) 280 V
MPPT Efficiency above 98 %
Max Input Strings Number 4 (two string in parellel to every Channel)
Dimensions (L*W*H) [IN mm] 543*394*648
Input Voltage Range (Vmp) 230V
Input Voltage Range (Voc) 280V
No. of Panels 24 (@320 W)
