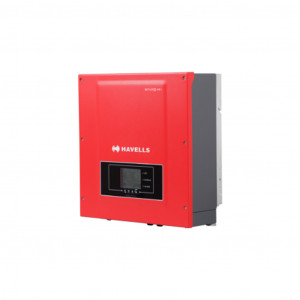

Havells Enviro GTi 15000TX - 15 KW Three Phase On-Grid Inverter

Havells Enviro GTi 15000TX - 15 KW Three Phase On-Grid Inverter

Brand: Havells

Category: Solar Inverter

Approximate Price

₹ 110,000

plus 12% GST

Solar Business Get Additional Discount

Install Solartrade App Today

Solartrade app

Become Our Channel Partner

Grow Your Solar Business or Start New

Product Description

• 7 years warranty
• Single and Dual MPPT for optimum generation
• Wide Input Voltage Range
• Maximum 98.2% Inverter Efficiency
• In-Built 25 Year Data Storage Capability
• Remote Monitoring – free for 25 years
• 10.16 cm (4”) LCD display
• Detachable cover for easy installation & maintenance
• Safety Protection- Anti islanding, Ground Fault monitoring
• Anti Reverse Power Controller - zero export (Optional)
• IEC Certification - As per MNRE

Technical Description

Input (DC)

Model Enviro GTi 15000T
Max. Input power 16500 W
Max. DC power for single MPPT 10500 W (500 V - 850 V)
Number of independent MPPT 2
Number of DC inputs 2 for each MPPT
Max. input voltage 1000 V
Start-up input voltage 350 V
Rated input voltage 600 V
MPPT voltage range 250 V - 960 V
Full load DC voltage range 370 V - 850 V
Max. input current per MPPT 21 A / 21 A
Input short circuit current for each Mppt 27 A

Output (AC)

Rated Power 15000 W
Max. AC Power 15000 VA
Max. AC Output Current 22 A
Nominal Grid Voltage 3/N/PE, 220/380 V
Grid Voltage Range 180~270 V
Nominal Frequency 50 / 60 Hz
Grid Frequency Range 47~53 Hz (According to local standard)
Active power adjustable range 0~100%
THDi <3%
Power factor 1 ( adjustable +/-0.8)
Power Limit export Zero export or adjustable power limit export


Max. efficiency 98.2%
Weighted eff. (EU/CEC) 98%
Self-consumption at night <1 W
Feed-in start power 50 W
MPPT efficiency >99.9%


DC Reverse Polarity Protection Yes
DC Switch Yes
Protection class/overvoltage catagory I/III
Input / output MOV (III) Optional
Safety protection Anti islanding, RCMU, Ground fault monitoring
Certification IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1,2,14,30), IEC 62109-1/2, IEC 61000.
SPD MOV : Type III standard


Power management unit According to certification and request
Standard Communication Mode RS485,WiFi/GPRS (optional), SD card
Operation Data Storage 25 years

General Data

Ambient temperature range -25° C~+60° C
Topology Transformerless
Degree of protection IP65
Allowable relative humidity range 0....100 % no condensing
Max. operating altitude 2000 m
Noise <45dB
Weight 45 kg
Cooling Natural
Dimension 707 mm x 492 mm x 240 mm
Display LCD display
Warranty 7 years
