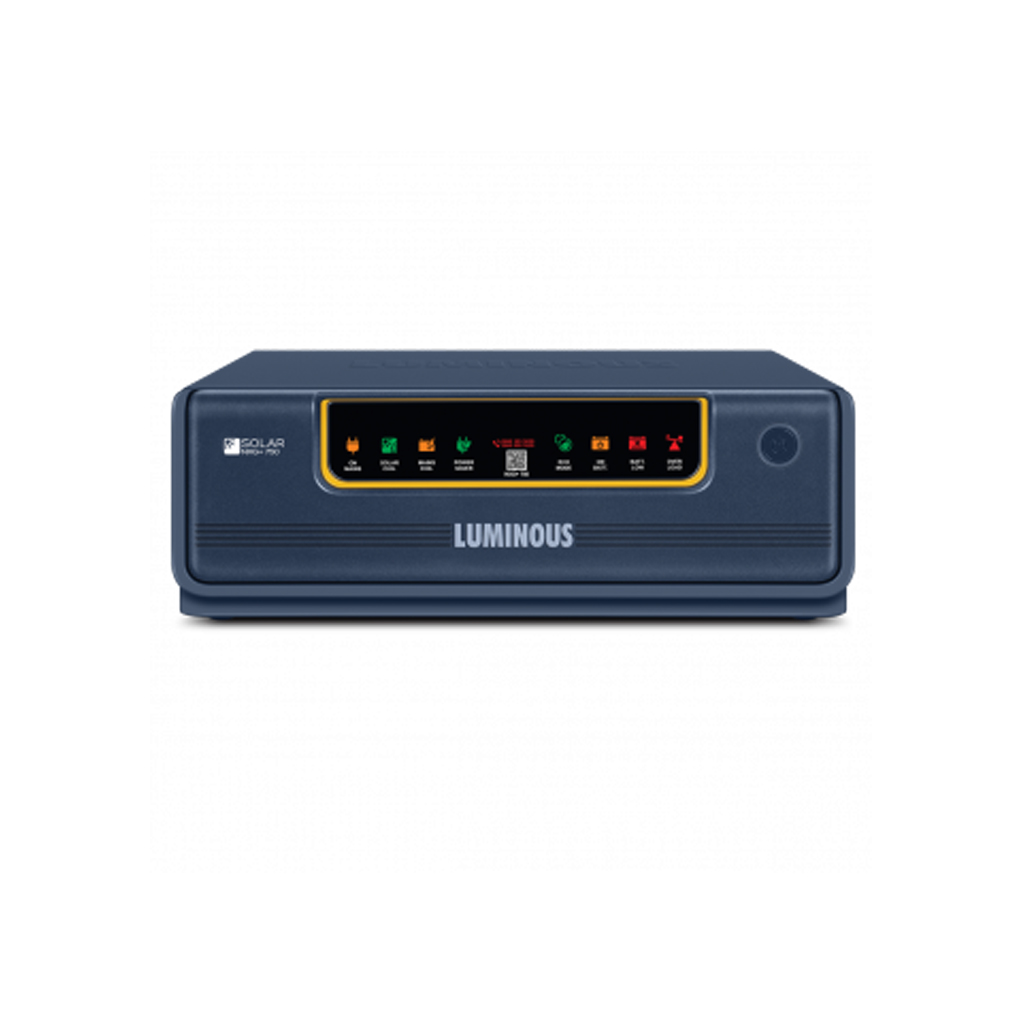

Luminous NXG +750 (400VA/12V) Hybrid Solar UPS
plus 18% GST
- Rated AC power: 400VA, 12V
- Operating Voltage 100-290V
- Max supported panel power: 12V upto 400 Wp
- Charge Controller Rating - 20 Amp/12V, with 98% efficiency for fast charging
- Supports single battery
- 24 Month Warranty
- Sine wave Solar hybrid UPS with 80% efficiency
- Savings of 25-30% on electricity bills by reducing charging time with the help of Intelligent Logic Control
- Power savings of 1.5 - 3 units per day* with the help of Intelligent Solar Optimization Technique (iSOT).
- Fast battery charging through i-Charge Technology, on grid power, if case of long power cuts
- Sine wave output for safety of your sensitive appliances and noiseless operations.
- Battery charging commences from 110 Volt which makes it suitable for both urban and rural areas
- Supports ECO Mode & UPS mode
- Extensive Safety and Protection through built in features for monitoring the health of your batteries and protects them against deep discharge, overcharge and short-circuit. The Main fuse for protection against excessive current thereby ensuring safety of your sensitive appliances.
- Battery type selector to configure charging currents as per connected battery.
|Range Name (Solar)||NXG+|
|VA Rating||400 VA|
|Output Waveform||Sine Wave|
|Net weight (kg.)||9.3|
|No. of 12V Batteries in Series||1|
|Technology (Solar)||With Battery|
|Maximum Power Voltage Vmp (V)||17V-19V|
|Max. supported panel power (Wp)||400|
|Nominal battery bank voltage||12V|
|Input Voltage Range (Voc)||19V-25V|
|Contents of Pack||1 N Inverter, 1 N Manual|
|Product Dimensions (L*W*H)||37.5*31.5*13.5 CM|
|Application Area||Homes and Small Shops|
