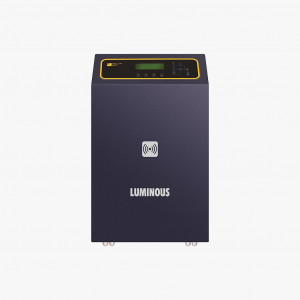

Luminous NXT+ 1.25 KVA/48V PCU
plus 12% GST
NXT+ range of PCUs is the ideal solution for off-grid applications. Designed to offer control, the PCU intelligently optimizes battery charging and power to load among Solar, Battery and Grid power.
MPPT Charge Controller
Our solar PCU has latest MPPT‚ (Maximum Power Point Tracking) charge controller. It enables you to extract maximum from solar power. It is 30% more efficient than a normal PWM based PCUs.
Being a bi - directional PCU it allows customers flexibility to set the priority setting based on their requirement of maximum energy saving, power backup only during power cut and power backup through battery in areas where grid supply is not available.
Super Informative User friendly LCD
A user friendly LCD that displays important information like battery time of charge & discharge, Grid Off / available, Priority setting etc.
Safe for your home
Luminous Solar PCU is armed with comprehensive protection features such as short-circuit, reverse polarity, battery over-charge and battery deep-discharge. Its pure sine wave output ensures safety and noiseless operation of connected appliances.
MNRE & IEC compliance
Solar PCU complies with all the National & International standards for safety and efficiency and reliability
Input Voltage range (Vmp): 60-130
Input Voltage range (Voc): 80-165
Nominal Voltage: 230 V
Nominal Battery Bank Voltage: 48 v
|Number of Phases||Single|
|Dimensions||300x504x515 mm (WxDxH)|
|Power Factor||0.8 lag to 0.8 lead|
|Output Waveform||Sine Wave|
|Item Code||PCU NXT+ 1.25 KVA/48V|
|Items in Pack||1 Piece|
