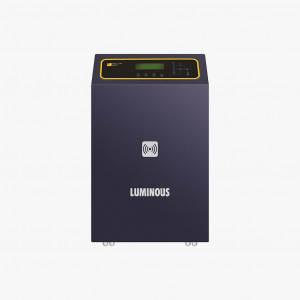

Luminous NXT+ 2.5 KVA/48V Solar PCU

Luminous NXT+ 2.5 KVA/48V Solar PCU

Brand: luminous

Category: Solar Inverter

Approximate Price

₹ 39,200

plus 18% GST

Solar Business Get Additional Discount

Install Solartrade App Today

Solartrade app

Become Our Channel Partner

Grow Your Solar Business or Start New

Product Description

NXT+ range of PCUs is the ideal solution for off-grid applications. Designed to offer control, the PCU intelligently optimizes battery charging and power to load among Solar, Battery and Grid power.

MPPT Charge Controller

Our solar PCU has latest MPPT‚ (Maximum Power Point Tracking) charge controller. It enables you to extract maximum from solar power. It is 30% more efficient than a normal PWM based PCUs.

Priority Setting

Being a bi - directional PCU it allows customers flexibility to set the priority setting based on their requirement of maximum energy saving, power backup only during power cut and power backup through battery in areas where grid supply is not available.

Super Informative User friendly LCD

A user friendly LCD that displays important information like battery time of charge & discharge, Grid Off / available, Priority setting etc.

Safe for your home

Luminous Solar PCU is armed with comprehensive protection features such as short-circuit, reverse polarity, battery over-charge and battery deep-discharge. Its pure sine wave output ensures safety and noiseless operation of connected appliances.

MNRE & IEC compliance

Solar PCU complies with all the National & International standards for safety and efficiency and reliability

Technical Description

BrandLuminous
Warranty24 months
Voltage

Input Voltage range (Vmp): 60-130

Input Voltage range (Voc): 65-165

Nominal Voltage: 230 V

Nominal Battery Bank Voltage: 48 v

Number of PhasesSingle
Dimensions300x504x515 mm (WxDxH)
Frequency50 Hz
Power Factor0.8 lag to 0.8 lead
Weight40 kg
Output WaveformSine Wave
Item CodePCU NXT+2.5 kVA/48V
Power2 kW
Items in Pack1 Piece
