Microtek 3KVA/48V M-Sun Solar Bi-directional Hybrid System

Microtek 3KVA/48V M-Sun Solar Bi-directional Hybrid System

Brand: Microtek

Category: Solar Inverter

Approximate Price

₹ 72,576

plus 12% GST

Solar Business Get Additional Discount

Install Solartrade App Today

Solartrade app

Become Our Channel Partner

Grow Your Solar Business or Start New

Product Description

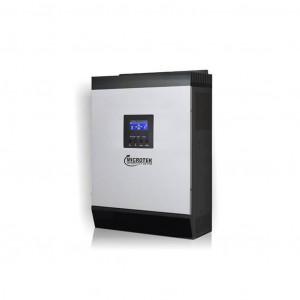

Microtek M-SUN SOLAR BI-DIRECTIONAL HYBRID SYSTEM is a system with Grid-Tie functionality and Dual Power Inputs.
MPPT Based Technology Grid Tie Wall mounted Hybrid System that converts Solar Energy into Electricity.

Key features

  • Pure Sinewave Output
  • Self-Consumption and Feed-in to the Grid.
  • Programmable Supply Priority for PV, Battery or Grid.
  • Programmable Multiple Operations Models: Off-Grid and Grid-Tie with Backup.
  • Monitoring Software for Real-Time Status Display and Control.
  • User-adjustable Battery Charging Current and Voltage.
  • Parallel operation upto 6 Units only.

Technical Description

Capacity (Rated Output Power)  3000 Watts
Capacity (Maximum PV Array Power)  4000 Watts


Acceptable Input Voltage Range  90~280V AC or 170 ~ 280V AC
Nominal DC voltage  48 V DC


Output Voltage Range  184 ~264.5 V AC
Nominal Output Current  13 Amps
Nominal Output Voltage  220 / 230 /240 V AC
Output Waveform  Pure Sine Wave


Max. Conversion Efficiency (DC to AC)  90%
Power Factor  > 0.99


Max. PV Array Open Circuit Voltage  145V DC
MPPT Range @ Operating Voltage  60V ~ 115 V DC
Frequency Range  50 / 60 Hz (Auto Sensing)
Maximum Solar Charge Current  10 ~ 80 Amps (Adjustable)
Maximum AC Charge Current  2 ~ 60 Amps (Adjustable)
Maximum Charge Current  80A + 60A = 140 A
Protections  High Input voltage, Short Circuit, Phase Shorting to Output, Battery Deep Discharge, Solar Panel Short Circuit,


Parallel Function  Yes
Communication  USB or RS 232 / Dry Contact
