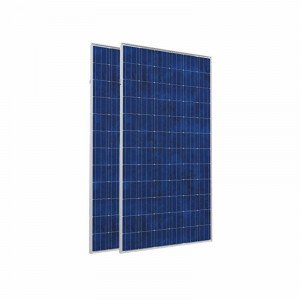

Microtek Solar Panel 320 Watt - 24 Volt Poly Module (Pack of 9)

Category

Solar Panel

Type

Select Quantity

Manufacturer
Microtek

Microtek International Private Limited

Founded

1986

Headquarter

India

Solartrade Partner
Product Description
  • Positive Power Tolerance Modules.
  • Highly Classified A-Grade Solar Cells for Lesser Degradation and High Energy.
  • Micro Crack Free Panels-100% EL Tested Before and After Lamination.
  • High Conversion Efficiency based on Leading Innovative Photo Voltaic Technologies.
  • PID Free Modules with Long Term Reliability.
  • Anti-Reflective Coating Glass Available.
  • Advance IP67/IP68 Junction Box for long-term weather endurance.
  • RFID Tag Available.
  • Sustain Heavy Wind and Snow Loads (2400Pa and 5400Pa).
  • Excellent Performance in Low Light.
  • Salt Mist, Ammonia, Blowing Sand and Hail Resistant.
  • Ideal for Off-Grid as well as On-Grid Applications.
  • IP67 rated MC4 Compatible Connectors.
  • EVA Encapsulation and Anti Reflection Coating for better Module Protection.
  • Undergoes Rigorous Quality Control and more than 20 in-house tests, (DH: Damp Heat Test. TC: Thermal Cycling Test. HF: Humidity Freeze Test.).
  • Heavy duty Anodized Aluminum Frames with pre-drilled holes for Quick Installation.
  • Manufactured with Premium Quality Input Materials.
Nominal Maximum Power (Pm) 320Watts/24V
Open Circuit Voltage (Voc) 45V
Short Circuit Current (Isc) 9.17A
Voltage at Maximum Power (Vmp) 36.20V
Current at Maximum Power (Imp) 8.84A
Maximum System Voltage 1000V
Length x Width x Thickness (LxWxT) – mm 1955x991x35
Mounting Holes Pitch (Y) – mm 978
Mounting Holes Pitch (X) – mm 946
Solar Cells per Module (Units) / Arrangement 72 / (12 x 6)
Solar Cell Type Multi Crystalline Silicon
Front Cover (Material / Thickness) Tempered & Low Iron Glass / 3.2mm
Encapsulate Ethylene Vinyl Acetate
Frame Material Anodized Aluminum Alloy
Junction Box IP67/IP68 Enclosure with Bypass Diodes
