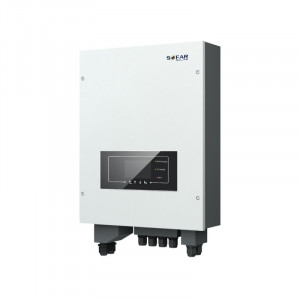

Sofar 5KW Single Phase Solar Inverter On-Grid 5KTLM-G2 (8 Years Warranty)


Select Quantity


Sofar Solar





Solartrade Partner
Product Description


  • Max 97.8% efficiency
  • Real time precise MPPT algorithm for max harvest
  • Dual MPP Tracker
  • Wide input voltage operation range
  • Independent dual MPPT tracking, better to adapt to the various roof power
  • plant designs

Low maintenance cost

  • Small size,light weight
  • Detachable cover for easy installation
  • Rust-free Aluminum covers
  • Flexible monitoring solution

All in one. Flexible and economical system solution

  • Real-time monitoring using mobile phone APP
  • Easy installation and maintenance due to “Plug & Play” connection
  • RS485 and External WIFI/GPRS(optional)
  • Built-in sound and light alarm function
  • Free site selection due to IP65

Intelligent grid management

  • Reactive power capability
  • Self power reducer when over frequency
  • Remote active/reactive power limit control

Weight: 15KG
Dimension: 344 × 160 × 478 mm

Input (DC)

Recommended PV input power 6650Wp
Max DC for single MPPT 3500W
Number of MPP trackers 2
Number of DC inputs 1 1/
Max. Input voltage 600V
Start-up voltage 120V
Rated input voltage 360V
MPPT operating voltage range 90 580V
Full power MPPT voltage range 250V-520V
Max. Input current per MPPT 11A 11A
Maxnimun DC input short circuit current per MPPT 13.2A

Output (AC)

Rated power 5000W
Max. AC power 5000VA
Max. Output current 22 8A
Nominal grid voltage L/N/PE, 220Vac, 230Vac, 240Vac
Grid voltage range 180Vac-276Vac (According to local standard)
Nominal frequency 50Hz/60Hz
Grid frequency range 45Hz-55Hz/54Hz-66Hz (According to local standard)
Active power adjustable range 0~100%
THDi <3%
Power factor 1default (adjustable+/-0.8)
Power limit export Zero export or adjustable power limit export


Max efficiency 98.0%
European weighted efficiency 97.5%
Self-consumption at night <1W
MPPT efficiency >99.9%


DC reverse polarity protection Yes
DC switch Optional
Protection class/overvoltage category I/III
Safety protection Anti islanding RCMU Ground , , fault monitoring
SPD MOV: Type III standard


Power management unit According to certification and request
Standard communication mode Rs485, Wifi/Ethernet/GPRS(optional), SD card(optional)
Operation data storage 25 years

General Data

Ambient temperature range -25 ~+60 ℃ ℃
Topology IP65
Allowable relative humidity range 0~100%
Max. Operating altitude 2000m
Noise <25dB
Weight 11.5kg
Cooling Natural
Dimension 405*315*135mm
Display LCD display
Warranty 8 years
