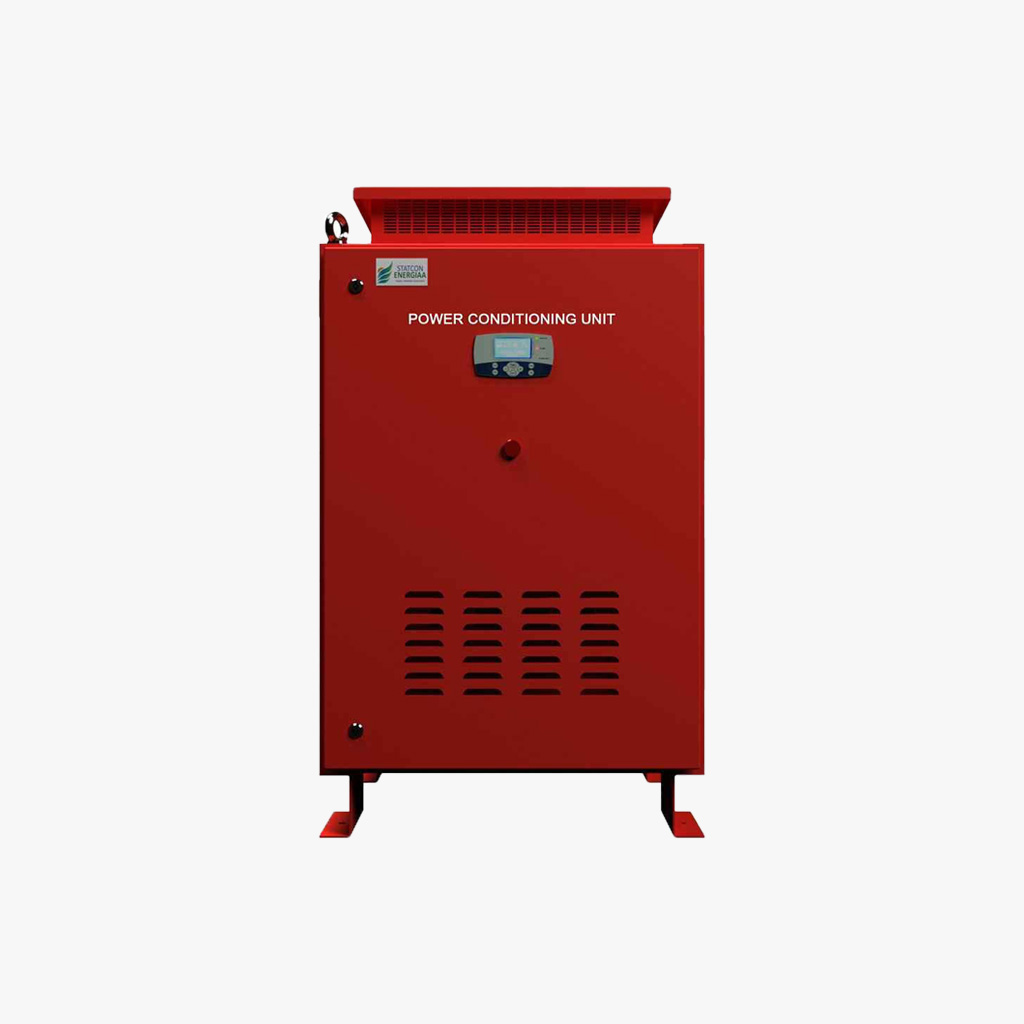

Statcon 15 KW/ 240V Single phase MPPT based Hybrid PCU

Statcon 15 KW/ 240V Single phase MPPT based Hybrid PCU

Brand: Statcon

Category: Solar Inverter

Approximate Price

₹ 143,947

plus 12% GST

Solar Business Get Additional Discount

Install Solartrade App Today

Solartrade app

Become Our Channel Partner

Grow Your Solar Business or Start New

Product Description

  • Phase: 1 Phase
  • Maximum Panel Voltage: 600V
  • Weight (kg): 175 Kg
  • Operating Temprature: 0 to 50 Degree C
  • Special Features: It Protects Mains Under / Over Voltage, Battery Under Voltage, Short Circuit Protection, Surge Protection, Anti-Islanding, Display Shows Mains Voltage & Current, PV-V, PV-KWhr, Ambient Temprature
  • Protection: IP 31

Adaptive algorithm for high efficiency MPPT Solar Charger, High efficiency DC-DC power conversion, Low current distortion and high PF during charging mode, Multi stage battery charging including temperature compensation, Fast changeover time, High inrush current, Current sharing between Solar & AC when present, Auto DG start-stop as per requirement, Digital display with keypad control, Data logging with storage and GPRS monitoring

Technical Description

Brand Statcon
Operating Temperature

0 to 50 deg C


Single Phase


Data Center, Site Office, Farm Houses, Telecom Shelters, Petrol Pumps, Pipe Lines, Hospitals & Apartments

Nominal Voltage

240 V

Input Voltage

230 V ±15%

Battery Type

Supported: Lead Acid Tubular, VRLA & Ni-Cd


175 kg

Input Frequency

50 Hz ±5%




Peak Efficiency: >85%


Maximum Panel Voltage: 600 V

Degree of Protection


Rated Power

Range: 12.5-20 kVA

Output Voltage

Max. Output Voltage: 230 V ±15%


15 kW

Output Frequency

50 Hz ±5%
