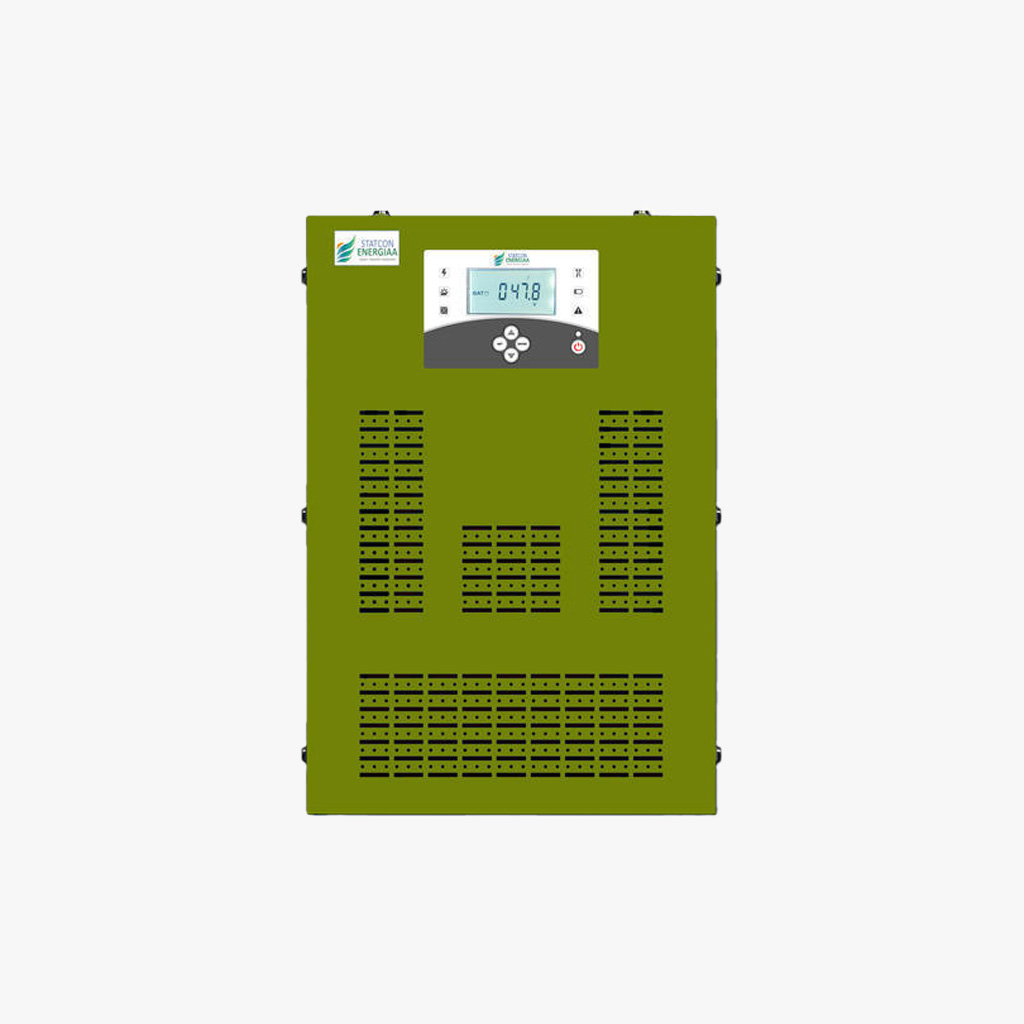

Statcon 3 KVA/ 48V Single phase MPPT based Hybrid PCU

Statcon 3 KVA/ 48V Single phase MPPT based Hybrid PCU

Brand: Statcon

Category: Solar Inverter

Approximate Price

₹ 68,171

plus 12% GST

Solar Business Get Additional Discount

Install Solartrade App Today

Solartrade app

Become Our Channel Partner

Grow Your Solar Business or Start New

Product Description

  • Phase: 1 Phase
  • Maximum Panel Voltage: 170V
  • Weight (kg): 63 Kg
  • Operating Temprature: 0 to 50 Degree C
  • Special Features: It Protects Inverter Over voltage, Inverter Over Load, Inverter Over Temperature, PV Under / Over Voltage Cut-off, Battery Reverse Polarity Protection, Mains Under / Over Frequency, Display Shows Inverter Voltage & Current, Battery Voltage & Current, CO2 Saved
  • Protection: IP 31

Adaptive algorithm for high efficiency MPPT Solar Charger, High efficiency DC-DC power conversion, Low current distortion and high PF during charging mode, Multi stage battery charging including temperature compensation, Fast changeover time, High inrush current, Current sharing between Solar & AC when present, Auto DG start-stop as per requirement, Digital display with keypad control, Data logging with storage and GPRS monitoring

Technical Description

Type of Product Solar Hybrid Inverter
Power Rating  3 KW
Input Supply 230V ± 15%
Input Frequency Range(Hz) 50Hz ± 5%
Peak Efficiency(%) >85%
Rated Power Range 2.5-5 KVA
Max. Output Voltage  230V ± 15%
Weight (Kg) 63 Kg
Voltage 48V
Output Frequency (Hz) 50Hz ± 5%
