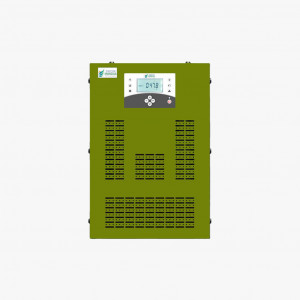

Statcon 5 KVA/ 96V Single phase MPPT based Off-Grid PCU

Statcon 5 KVA/ 96V Single phase MPPT based Off-Grid PCU

Brand: Statcon

Category: Solar Inverter

Approximate Price

₹ 60,762

plus 18% GST

Solar Business Get Additional Discount

Install Solartrade App Today

Solartrade app

Become Our Channel Partner

Grow Your Solar Business or Start New

Product Description


  • 5 Mode Priority Selection.
  • Industrial Grade Inverter.
  • Monitoring & Plug N Play.
  • Advanced DSP Control Technology.
  • Largest In-Class LED Display.
  • High Efficiency MPPT Technology.
  • Easy Fault Identification Process.
  • Benchmark Technology for Solar.
  • Unparalleled Service Support.
  • Priority Mode: Mode 1:- Solar Priority Mode with No Grid Charging.
  • Mode 2:- For Areas with Reliable Grid.
  • Mode 3:- To Extract Maximum Solar Charged Energy from Battery.
  • Mode 4:- Battery Extra Backup Mode.
  • Mode 5:- Normal Home Inverter Mode.
  • Faults Displayed on LCD: TCS Fail (For VRLA) & Battery Low Alarm.
  • GPRS: All Parameters can be Viewed Over Internet by Accessing through a User Id & Password (Add on Feature).
  • Wi-Fi: Download the Energiaa Lite App to Easily Observe All Parameters of Your Seog Series Solar PCU (Add on Feature).
  • Micro SD Card: All Parameters can be Logged in Micro SD Memory Card as per Date/Time, Logged Parameter can be Viewed/Saved through Laptop/PC.

Technical Description

Brand Statcon
Type of cooling

Temperature Controlled Fan Forced

Frequency Range

47-53 Hz

Battery Voltage

Nominal: 96 V

Number of Phases


Operating Voltage Range

PV: 140-250 V


IEC 61683

IEC 60529


Floor Standing

Voltage at Open Circuit (Voc)

320 V

Battery Type

Lead Acid Tubular, VRLA, LMLA & Li-ion (Selected Models)

Protection Class



Less than 3%





Load Capacity

Nominal: 5 KW


Max. 95% Non-Condensing

AC Voltage Range

150-270 V AC

Output Voltage

Nominal: 230 V AC


PV Voltage, PV Current, PV KWh Cumulative, 30 days daily PV kWh, Monthly generated kWh & Yearly generated kWh

Output Frequency

50 Hz


Above Sea Level: 1000 m
