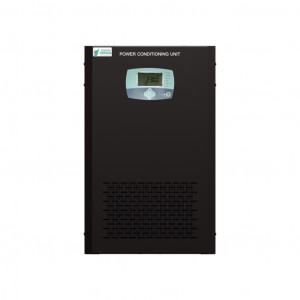

Statcon 8 KW/ 120V Single phase MPPT based Hybrid PCU

Statcon 8 KW/ 120V Single phase MPPT based Hybrid PCU


Price From

INR 107801

Select Quantity

Statcon Energiaa

Statcon Energiaa Private Limited





Product Description
  • An adaptive algorithm for high-efficiency MPPT Solar Charger
  • High-efficiency DC-DC power conversion
  • Low current distortion and high PF during charging mode
  • Multi-stage battery charging including temperature compensation
  • Fast changeover time
  • High inrush current
  • Current sharing between Solar & AC when present
  • Auto DG start-stop as per requirement
  • Digital display with keypad control
  • RS-485 with an extended touchscreen display
  • Data logging with storage and GPRS monitoring
Type of Product Solar Hybrid Inverter
Humidity Max. 95% Non-Condensing
Phase Single
Operating Temperature 0-55 degrees (without Derating)
Nominal Capacity 8 KVA
Nominal Battery Voltage 120V
Display interface Graphical LCD with backlight (128×64)
Altitude 1000m above sea level
Cable Entry Sheet Metal, Floor Standing, Front/ Rear Door
Cooling method Temp Controlled Force Cooling
Degree of Protection IP-21 as per IEC 61529
