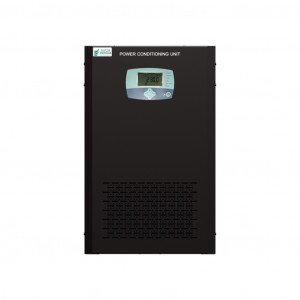

Statcon 8 KW/ 96V Single phase MPPT based Hybrid PCU

Statcon 8 KW/ 96V Single phase MPPT based Hybrid PCU

Brand: Statcon

Category: Solar Inverter

Approximate Price

₹ 111,566

plus 12% GST

Solar Business Get Additional Discount

Install Solartrade App Today

Solartrade app

Become Our Channel Partner

Grow Your Solar Business or Start New

Product Description

  • An adaptive algorithm for high-efficiency MPPT Solar Charger
  • High-efficiency DC-DC power conversion
  • Low current distortion and high PF during charging mode
  • Multi-stage battery charging including temperature compensation
  • Fast changeover time
  • High inrush current
  • Current sharing between Solar & AC when present
  • Auto DG start-stop as per requirement
  • Digital display with keypad control
  • RS-485 with an extended touchscreen display
  • Data logging with storage and GPRS monitoring

Technical Description

Type of Product Solar Hybrid Inverter
Humidity Max. 95% Non-Condensing
Phase Single
Operating Temperature 0-55 degrees (without Derating)
Nominal Capacity 8 KVA
Nominal Battery Voltage 96V
Display interface Graphical LCD with backlight (128×64)
Altitude 1000m above sea level
Cable Entry Sheet Metal, Floor Standing, Front/ Rear Door
Cooling method Temp Controlled Force Cooling
Degree of Protection IP-21 as per IEC 61529
