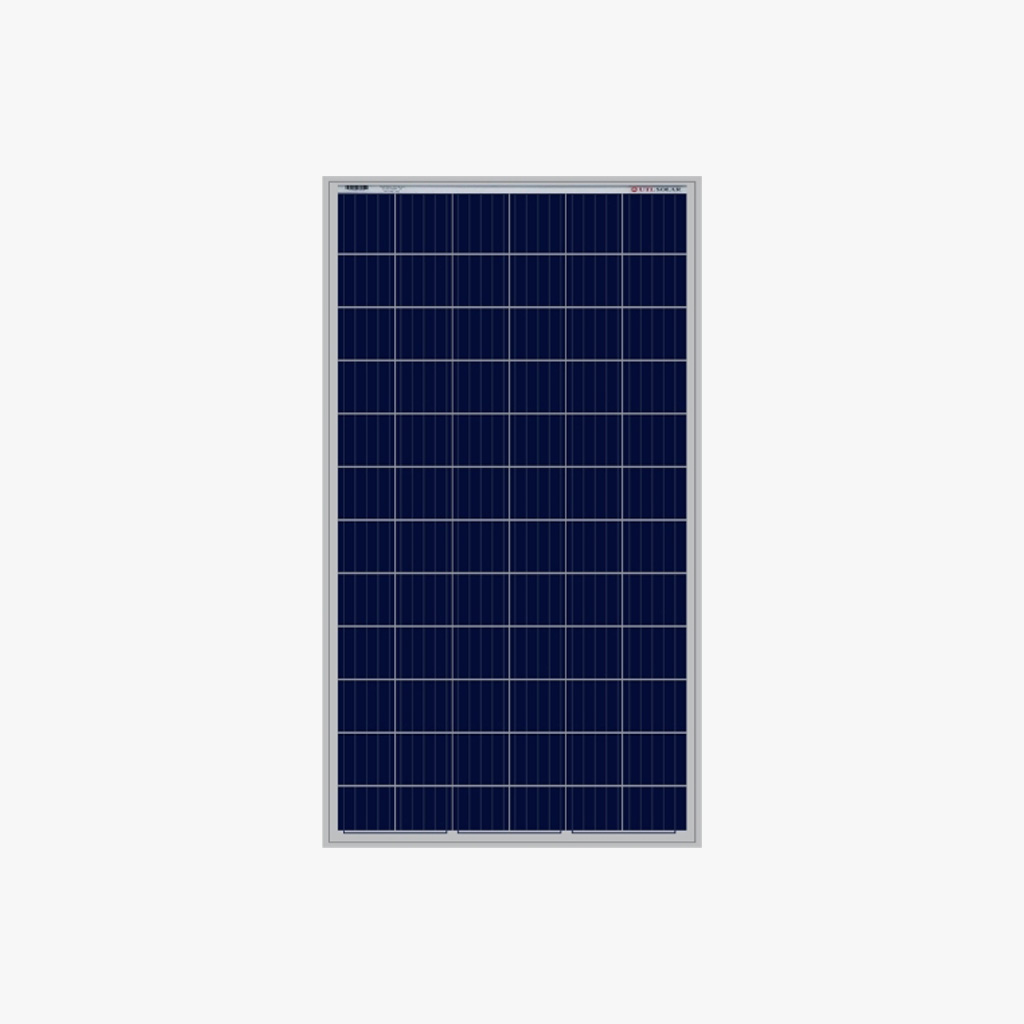

UTL 330 Watt Polycrystalline Solar Panel (Pack of 9)

UTL 330 Watt Polycrystalline Solar Panel (Pack of 9)

Brand: UTL

Category: Solar Panel

Approximate Price -Taxes Extra

₹ 71,000

Download Solartrade App Today

Solartrade app

Product Description

  • Excellent power generation even in low light irradiation
  • 2 mm toughened textured glass for front protection.
  • Highly efficient solar panels with more than 18% efficiency.
  • Available in various power ratings with 36/72 cells.
  • Superior performance in all atmospheres.
  • Anodized aluminium alloy frame for protection.

Technical Description

Solar Panel Rating 330 Watt
Panel Type Polycrystalline
Short circuit current 9.10 ampere
Operating voltage at Pmax VMP 37.03 volt
Operating current Imp 8.79 ampere
Open circuit voltage VOC 45 volt
Module efficiency >18 %
Operating temperature -40 °C to 80 °C
Maximum system voltage 100 V
Power tolerance 3%
Fill factor 77%
Standard test condition Irradiance of 1000 W/m square, spectrum AM 1.5 and cells temperature of 25 °C
Max. series fuse rating 10
No. of Busbar 5BB
No. of cells 72
Cell arrangement 12*6
Module dimension 1960*690*40 mm
Weight 21 Kg
Front side junction box IP65, 3 diode
Frame Anodized Aluminium Alloy
Front glass 3.2mm Toughened Textured
Cables and connectors 4mm,AWG 1000V/mc4 connectors
Warranty 25 Years Performance & 10 Year Product Warranty
