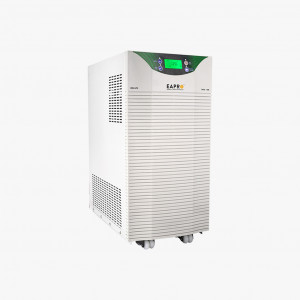

EAPRO 10 KVA/120V PWM Off-Grid Solar Inverter


Select Quantity


Eapro Global Ltd





Solartrade Partner
Product Description
  • Rated AC power: 10KVA, 120V/180V
  • Operating Voltage 100V-280V
  • Provision for the setting of critical parameters as per user requirement, like, Time, Boost Battery Voltage, Solar Max charging current, Battery Low Cut voltage etc
  • Max supported panel power: 120V/180V up to 12000Wp
  • Charge Controller Rating – 70A/120V-50A/180V, with 98% efficiency for fast charging
  • 24 Months Warranty
  • Efficient Current Charging at Low Mains in Normal Mode only.
  • Intelligent Battery Charging and Charge Sharing with Mains/Charging by solar power only.
  • Dual Charging current option for Normal Charging and High Charging
  • High Power new generation MOSFET capable of handling high inrush/surge current.
  • Intelligent Multicolour LCD display for all system parameters
  • Programmed inbuilt cooling fan.
  • Inbuilt fully regulated charge controller.
Capacity (VA) 10KVA
Nominal battery voltage (VDC) 120V/180V
Charge Controller Type PWM
Charge Controller Rating 70A/120V-50A/180V
Maximum PV Power 12000Wp
Rated Output Power (KVA) 10KVA
Input Voltage Range (Voc) 216V/324V
Input Voltage Range (Vmp) 145V-170V/218V-255V
Battery Boost volatage (Adjustable) 14.4V (Default setting)
Battery Low Cut (Adjustable) 10.6V (Default setting)
Grid charging current(Adjustable) 20A/16A (Default setting)
Solar Charging Current(Adjustable) 40A (Default setting)
Dimensions (L*W*H) [mm] 530*370*620 mm (Net Weight 67.28 Kg/70.53Kg)
Supported Battery Types Flat,Tubular, VRLA(SMF)
