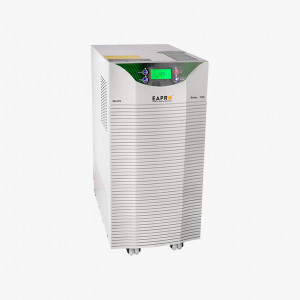

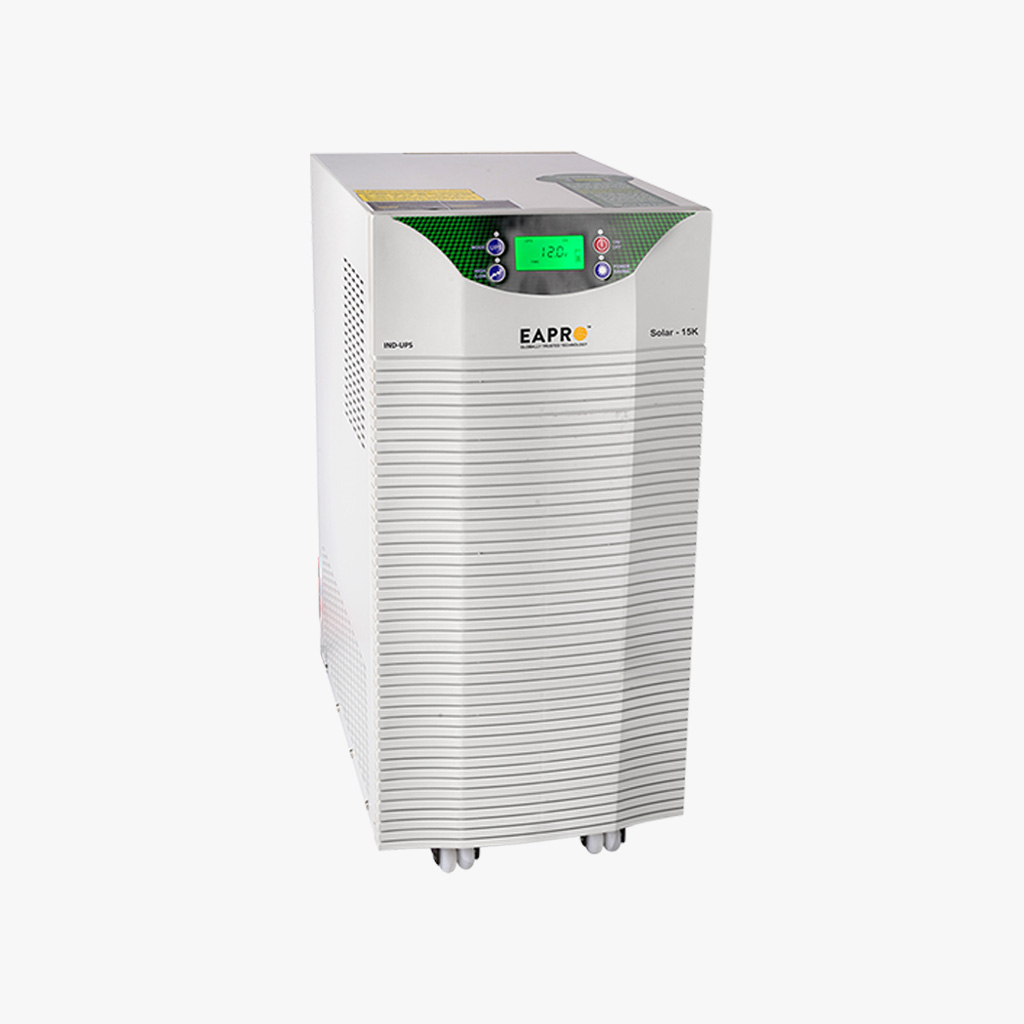

EAPRO 15 KVA/240V PWM Off-Grid Solar Inverter


Select Quantity


Eapro Global Ltd





Solartrade Partner
Product Description
  • Rated AC power: 15KVA, 240V
  • Operating Voltage 100V-280V
  • Provision for the setting of critical parameters as per user requirement, like, Time, Boost Battery Voltage, Solar Max charging current, Battery Low Cut voltage etc
  • Max supported panel power: 240V up to 16000Wp
  • Charge Controller Rating – 50A/240V, with 98% efficiency for fast charging
  • 24 Months Warranty
  • Efficient Current Charging at Low Mains in Normal Mode only.
  • Intelligent Battery Charging and Charge Sharing with Mains/Charging by solar power only.
  • Dual Charging current option for Normal Charging and High Charging
  • High Power new generation MOSFET/IGBT capable of handling high inrush/surge current.
  • Intelligent Multicolour LCD display for all system parameters
  • Programmed inbuilt cooling fan.
  • Inbuilt fully regulated charge controller.
Capacity (VA) 15KVA
Nominal battery voltage (Vdc) 240V
Charge Controller Type PWM
Charge Controller Rating 50A/240V
Maximum PV Power 16000Wp
Rated Output Power (kVA) 15KVA
Input Voltage Range (Voc) 432V
Input Voltage Range (Vmp) 290V-340V
Battery Boost volatage (Adjustable) 14.4V (Default setting)
Battery Low Cut (Adjustable) 10.6V (Default setting)
Grid charging current(Adjustable) 16A (Default setting)
Solar Charging Current(Adjustable) 40A (Default setting)
Dimensions (L*W*H) [mm] 785*400*740 mm (Net Weight 91.0 Kg)
Supported Battery Types Flat,Tubular, VRLA(SMF)
