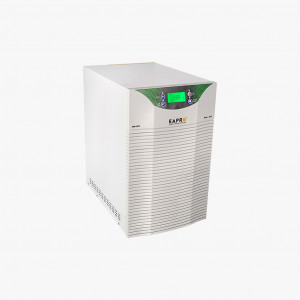

EAPRO 5.5 KVA/96V PWM Off-Grid Solar Inverter
plus 18% GST
- Rated AC power: 5.5KVA, 96V
- Operating Voltage 100V-280V
- Provision for setting of critical parameters as per user requirement, like, Time, Boost Battery Voltage, Solar Max charging current, Battery Low Cut voltage etc
- Max supported panel power: 96V upto 6400Wp
- Charge Controller Rating – 70A/48V - 50A/96V, with 98% efficiency for fast charging
- 24 Months Warranty
- Efficient Current Charging at Low Mains in Normal Mode only.
- Intelligent Battery Charging and Charge Sharing with Mains/Charging by solar power only.
- Dual Charging current option for Normal Charging and High Charging
- High Power new generation MOSFET capable of handling high inrush/surge current.
- Intelligent Multicolour LCD display for all system parameters
- Programmed inbuilt cooling fan.
- Inbuilt fully regulated charge controller.
|Nominal battery voltage (VDC)||96V|
|Charge Controller Type||PWM|
|Charge Controller Rating||70A/48V - 50A/96V|
|Maximum PV Power||6400Wp|
|Rated Output Power (KVA)||5KVA|
|Input Voltage Range (Voc)||88V/172V|
|Input Voltage Range (Vmp)||116V-136V|
|Battery Boost volatage (Adjustable)||14.4V (Default setting)|
|Battery Low Cut (Adjustable)||10.6V (Default setting)|
|Grid charging current(Adjustable)||24A/16A (Default setting)|
|Solar Charging Current(Adjustable)||40A (Default setting)|
|Dimensions (L*W*H) [mm]||510*370*550 mm (Net Weight 43.79 Kg)|
|Supported Battery Types||Flat,Tubular, VRLA(SMF)|
