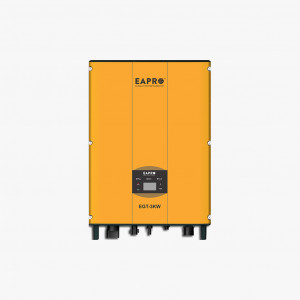

EAPRO EGT-3KW Grid-Tie Solar Inverter


Select Quantity


Eapro Global Ltd





Solartrade Partner
Product Description
  • Wider voltage range, lower starting voltage and higher conversion efficiency (Max efficiency can reach to 99%).
  • Smart grid adaptive to meet the requirement of various power grid access.
  • Aluminum casing, natural cooling, Ip65 protection level. Capacity
  • Earn money with net metering
  • Save money with lesser equipment and installation costs.
  • MPPT Based technology with wall mounted system.
  • More efficient and highly reliable.
  • Phone expert, Info expert monitoring center.
Max. DC input voltage (V) 500
Starting voltage(V)/Min. operation voltage(V) 80/60
MPPT Range(V)/Rated input voltage(V) 120-450/360V
Number of MPPT/String per MPPT 1/1
Max. DC current (A) Per MPPT x Number of MPPT 15x1
DC switch Optional
Rated output power (W) 3000
Max. AC output current (A) 13
Grid voltage range 230/180-277V
Grid frequency range 50Hz(44-55Hz) / 60Hz(54-65Hz)
Power Factor ≥ 0.99(at rated power)
THDi <3%(at rated power)
AC output Single-phase (L, N, PE)
Cooling method Natural cooling
Max. efficiency 97.30%
Euro-efficiency 96.50%
MPPT efficiency 99.90%
Protection degree IP65
Self-consumprtion (at night) <1(W)
Topology Transformer less
Operating temperature range -25 C -+60 C (derate after 45 C)
Relative humidity 0-95%, no condensation
Protection PV array insulation protection, PV array leakage current protection, Ground fault monitoring, Grid monitoring, Island protection, DC monitoring, Short current protection etc.
Display LCD (standard) / LED (optional)
Communication interface Rs485 (standard) : Wi Fi, GPRS200 (optional)
Dimension (H x W x D mm) 280 x 300 x 138
Weight (kg) ≤9.5
Installation Wall mounting
