Amrit Energy Services is a global solar design and engineering firm, delivering expert solutions for rooftop, ground-mounted, and hybrid (solar + BESS) power plants. Established in 2022, we have successfully designed over 1 GW of solar capacity across India, UK, Ireland, Europe, Africa, UAE, and the Middle East. We specialize in providing end-to-end engineering services, including: Solar PV layout & electrical design (DC & AC) Shadow analysis & PVSyst simulation String sizing, cable schedule, trenching design SCADA & single-line diagrams (SLD) BESS integration design (DC-coupled & AC-coupled) Utility approvals & as-built documentation Our team has experience with all major international standards (IEC, IS, NEC, G98/G99, DNO, DEWA, etc.)

Location

London, England

Share Profile

Ratings & Reviews

No Ratings or Reviews Yet

Services Offered

Project Designing

Work Portfolio

418KW On-Grid Consultancy

Project Title:


418.2 kWp Rooftop Grid-Tied Solar PV System


Client:


Kiernan Milling


Location:


📍 Ballingall, County Longford, Ireland


Project Overview:


Amrit Energy Services provided the complete solar PV system design package for a commercial rooftop installation at Kiernan Milling. The project was engineered for optimal performance under Irish climatic conditions and grid standards, using premium equipment and reliable electrical configuration.


System Details

ParameterSpecificationDC Capacity418.2 kWpAC Capacity280 kWacDC/AC Ratio1.49Modules Used697 x JA Solar JAM72D40-600/LB (600Wp)Inverters2 x Huawei SUN2000-115KTL-M2, 1 x 50KTLMounting SystemFlush Mount, Landscape OrientationTilt / Azimuth8° Tilt, 169° Azimuth Annual Yield (P50)341,730 kWh/yearSpecific Yield818 kWh/kWp/year


Scope of Work

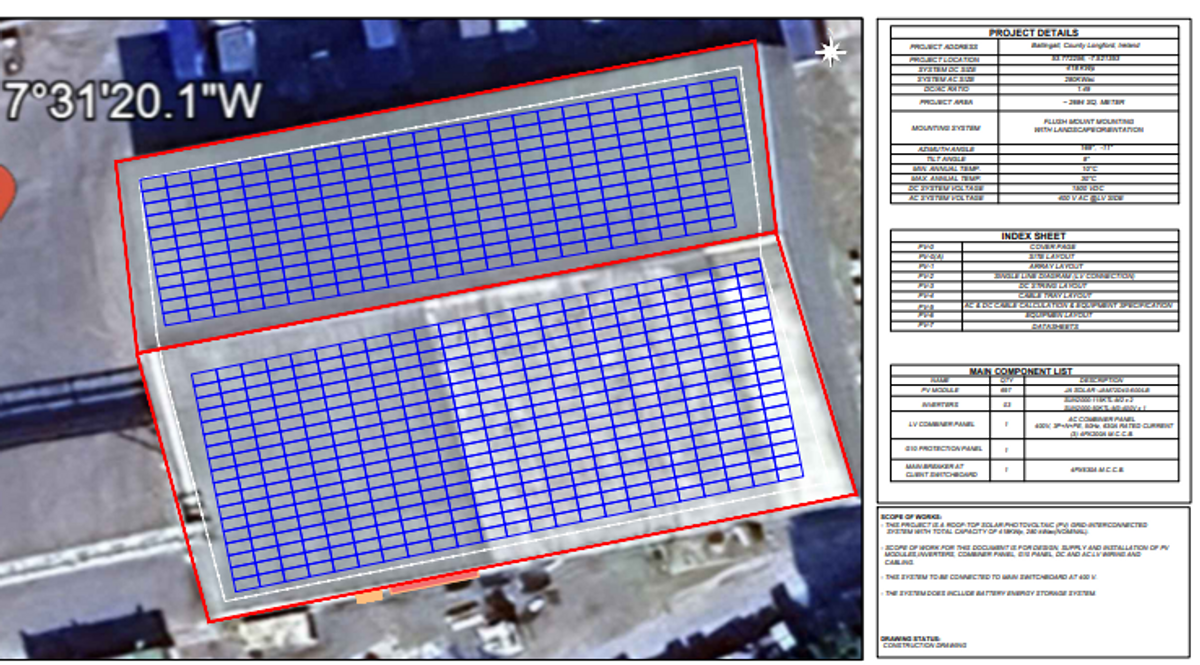

✔️ PV Array Layout

✔️ DC String Configuration

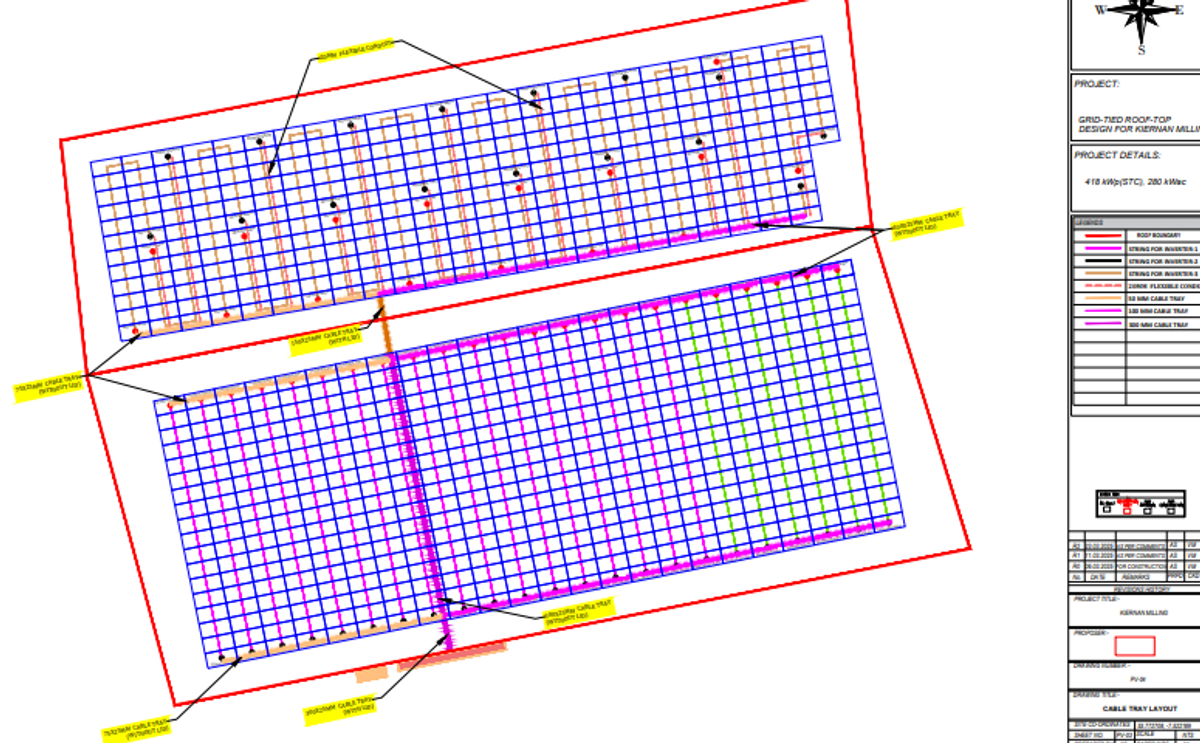

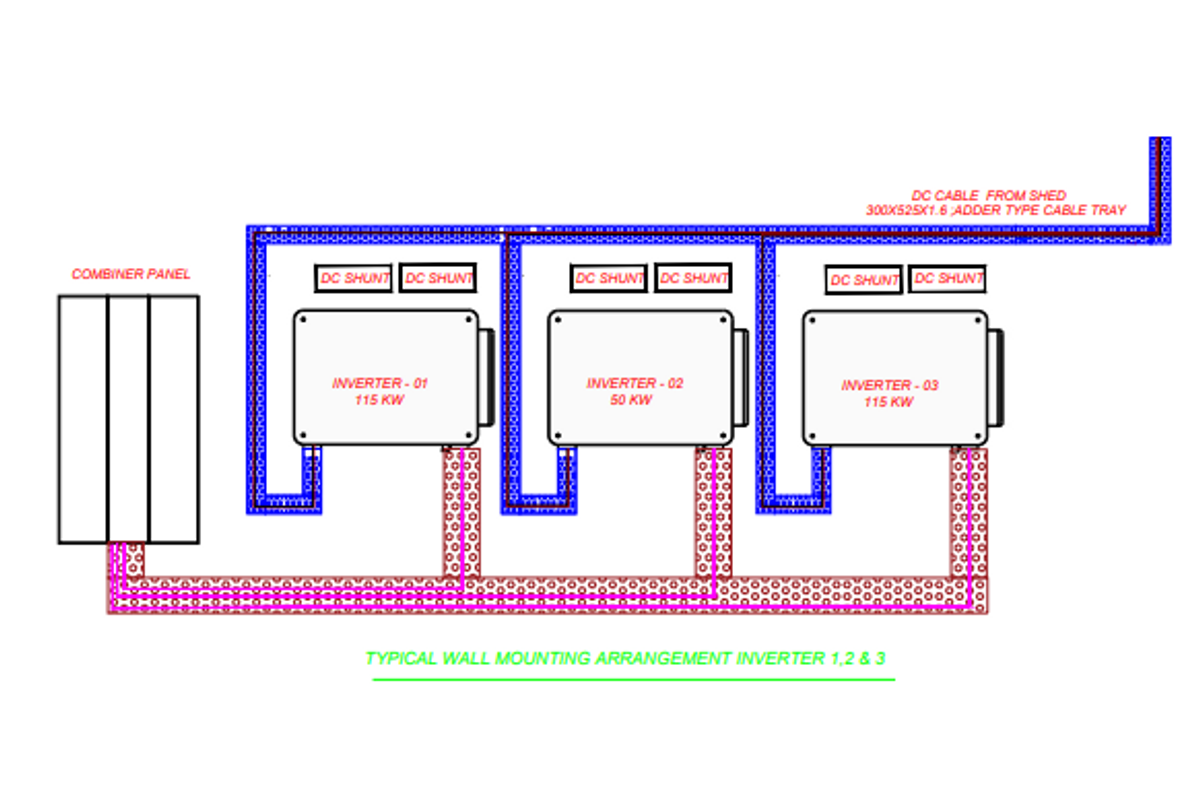

✔️ Cable Tray & Equipment Layout

✔️ AC/DC Cable Sizing & Loss Calculations

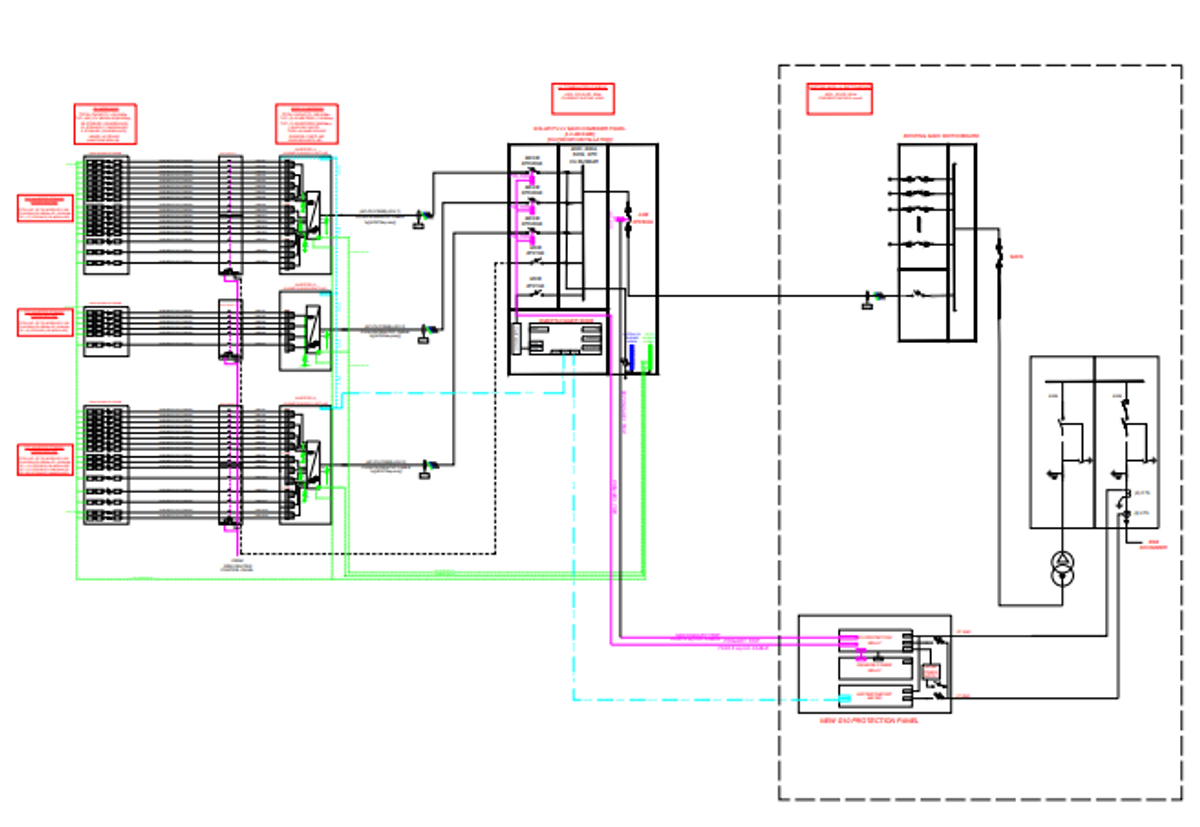

✔️ Single Line Diagram (SLD)

✔️ Equipment Specification & Datasheets

✔️ G10 Protection Panel Integration

✔️ Smart Monitoring via Huawei SmartLogger


Design Standards


  • Grid-compliant with Irish G10 requirements
  • Designed for 1500 VDC system voltage
  • Includes AC combiner panel (630 A, 400V, 3P+N+PE)
  • Fire safety handrails and access compliance ensured


418KW On-Grid Consultancy
418KW On-Grid Consultancy
418KW On-Grid Consultancy
418KW On-Grid Consultancy

27KW On-Grid Consultancy

Project: Rooftop Grid-Tied Solar PV System – Wells, UK


Client: Electrical Ventilation Renewables Ltd.

Location: Glastonbury Road, Wells, BA5 1TJ, United Kingdom

Prepared by: Amrit Energy Services

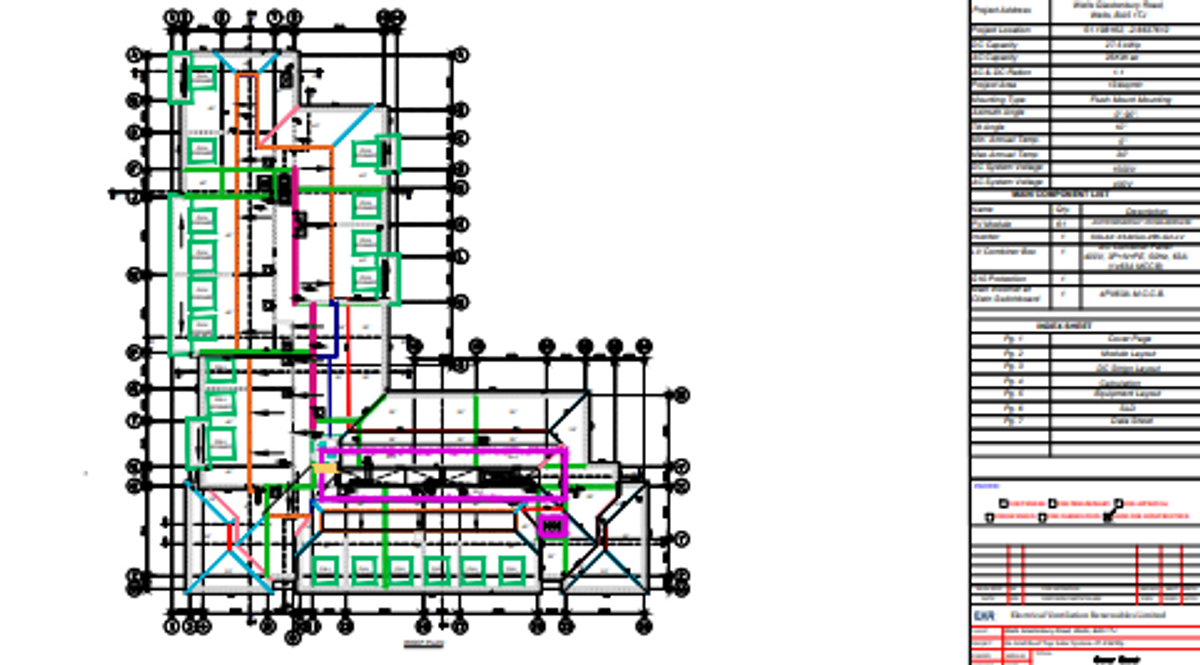

System Overview


Parameter Specification

System Capacity 27.45 kWp DC / 25 kWac AC

Modules Used 61 x Astroenergy CHSM48RN 450Wp

Inverter 1 x SOLAX X3-MGA-25K-G2-LV

Mounting System Flush Mount, Tilt: 10°, Azimuth: 0° / 90°

System Voltage 1500 V DC / 400 V AC

DC/AC Ratio 1.1

Array Area Approx. 122 m²


Design Scope by Amrit Energy Services

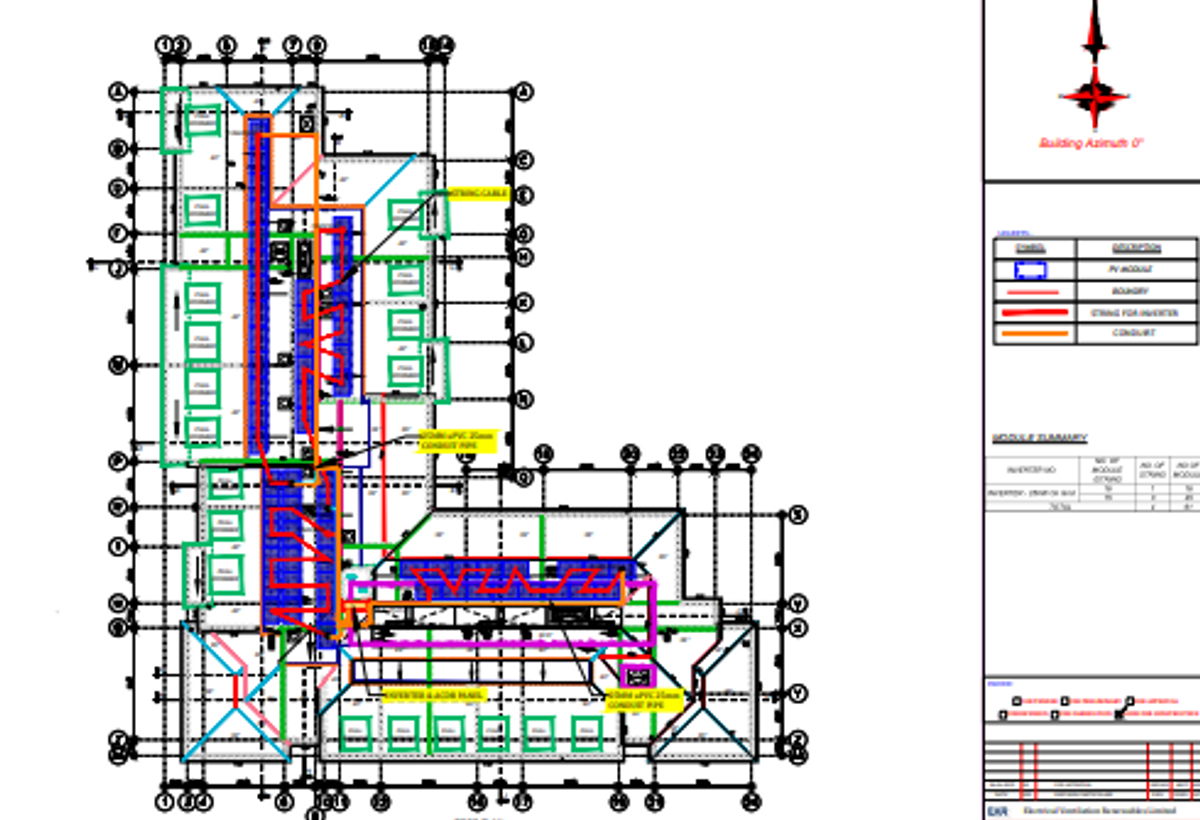

  • PV module layout and roof utilization planning
  • DC string design and cable routing using uPVC conduit
  • AC & DC cable sizing with tray and protection details

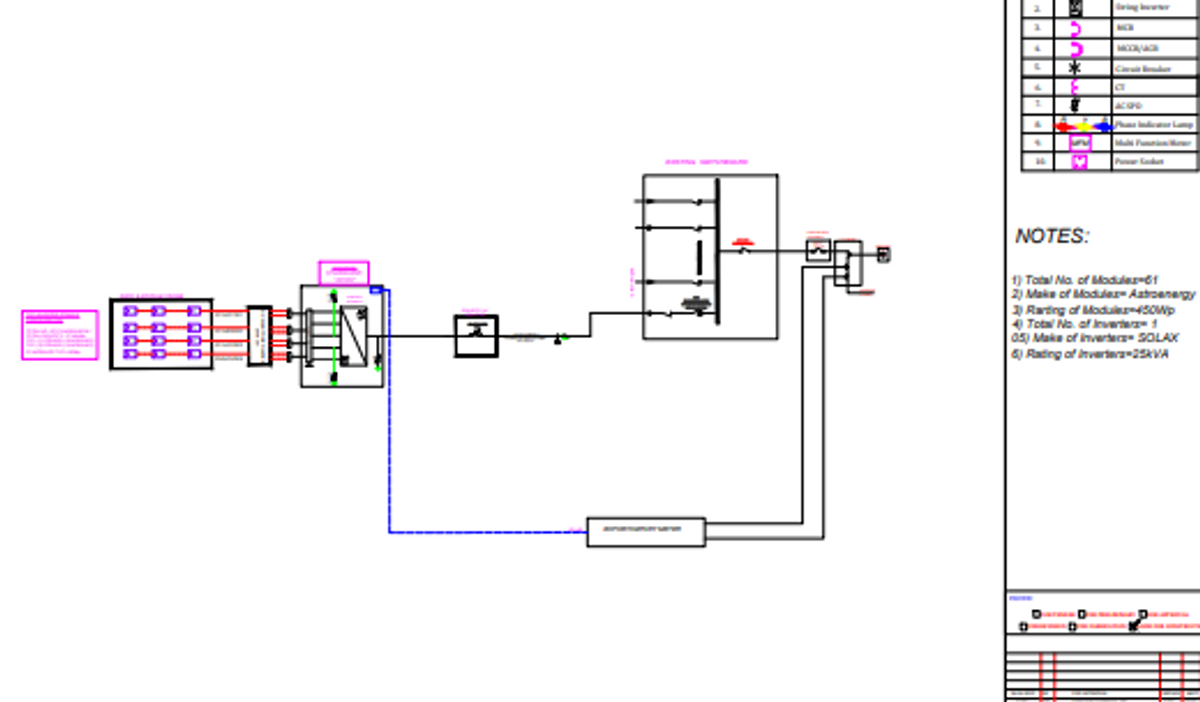

  • Single Line Diagram (SLD) with MCCB, SPD, MFM, G10
  • Equipment layout with wall-mounted inverter design
  • G10 protection integration for UK grid compliance
  • Detailed datasheet and equipment specification
  • Loss calculations and voltage drop checks

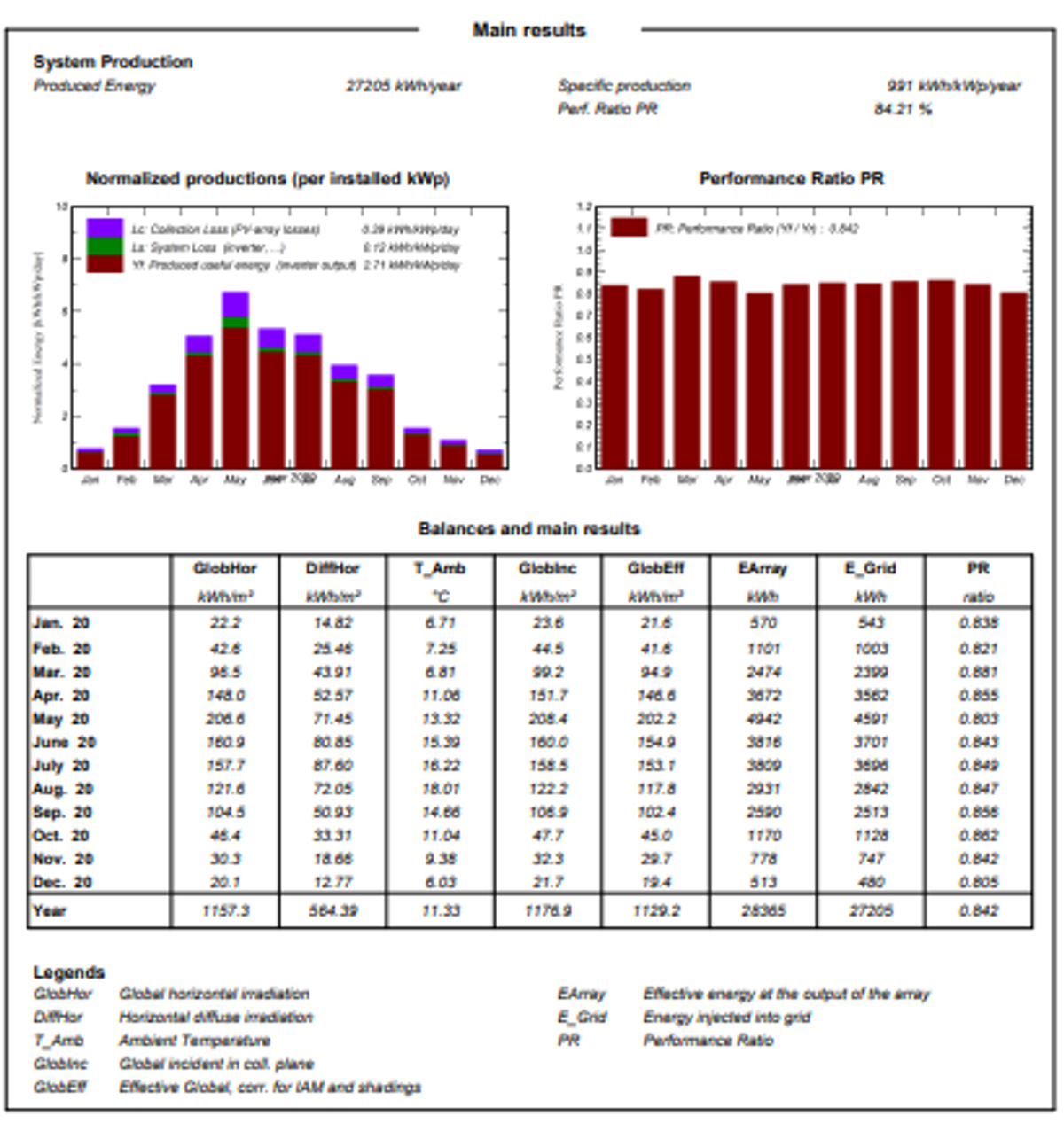

PVsyst Simulation Summary (June 2025)


Performance Parameter Value


Annual Energy Output 27,205 kWh/year

Specific Yield 991 kWh/kWp/year

Performance Ratio (PR) 84.21%

Weather Source PVGIS-SARAH2 2020

Losses Considered Soiling, LID, mismatch, AC/DC wiring


Monthly Output Range:


  • Peak Months: May (4,591 kWh), April (3,562 kWh), July (3,696 kWh)
  • Low Months: December (480 kWh), January (543 kWh)

P50-P90 Annual Output Forecast:


  • P50: 27.21 MWh
  • P75: 26.23 MWh
  • P90: 25.35 MWh

Technical Highlights


  • MPPT Optimization: 1 MPPT (16 modules), 3 MPPTs (15 modules each)
  • Inverter Losses: <2.5% (incl. efficiency and loading factors)
  • System Unavailability: 1%
  • Total system wiring and mismatch losses: <5%

✅ Status:


✔️ Design Finalized

✔️ PVsyst Simulation Approved

✔️ Ready for DNO submission / installation phase


About Amrit Energy Services


We are a global solar design and engineering consultancy with over 1 GW of experience across India, UK, Europe, Africa, and the Middle East. We specialize in rooftop, ground-mounted, and hybrid (solar + BESS) power plant designs, offering precise and standards-compliant documentation.
