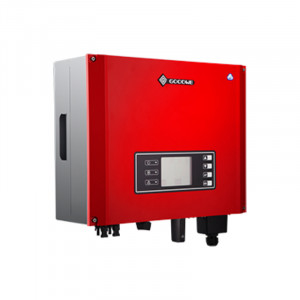

Goodwe 20KW On-Grid Inverter -Dual MPPT, Three Phase


Select Quantity





Solartrade Partner
Product Description

Model: GW20KN-DT

Smart DT Series 12-20KW | Three Phase | 2 MPPT

The GoodWe Smart DT series of inverters is specially designed for three-phase rooftop systems, the power range of 12kW, 15kW, 17KW and 20kW are ideal for small commercial usage. The integrated two MPPTs allow two-array inputs from different roof orientations. The SDT series inverter is small, light and easy to install. Suitable for both outdoor and indoor installations, this inverter offers a quiet operation due to its fan-less, natural convection cooling.

PV String Input Data

Model GW20K-DT
Max. DC Input Power (W) 26000
Max. DC Input Voltage (V) 1000*
MPPT Range (V) 260~850
Start-up Voltage (V) 250
Nominal DC Input Voltage (V) 620
Max. Input Current (A) 22/22
Max. Short Current (A) 27.5/27.5
No. of MPP Trackers 2
No. of Input Strings per Tracker 2

AC Output Data

Nominal Output Power (W) 20000
Max. Output Apparent Power (VA) 20000
Nominal Output Voltage (V) 400, 3L/N/PE
Nominal Output Frequency (Hz) 50/60
Max. Output Current (A) 30
Output Power Factor ~1 (Adjustable from 0.8 leading to 0.8 lagging)
Output THDi (@Nominal Output) <1.5%


Max. Efficiency 98.4%
Europe Efficiency 98.1%


Anti-islanding Protection Integrated
Input Reverse Polarity Protection Integrated
Insulation Resistor Detection Integrated
DC SPD Protectioin Integrated
Residual Current Monitoring Unit Integrated
Output Over Current Protection Integrated
Output Short Protection Integrated
Output Over Voltage Protection Integrated

General Data

Operating Temperature Range (°C) -25~60
Relative Humidity 0~100%
Operating Altitude (m) ≤4000
Cooling Fan Cooling
Noise (dB) <45
User Interface LCD & LED
Communication RS485 or WiFi
Weight (kg) 39
Size (Width*Height*Depth mm) 516*650*203
Protection Degree IP65
Night Self Consumption (W) <1
Topology Transformerless
