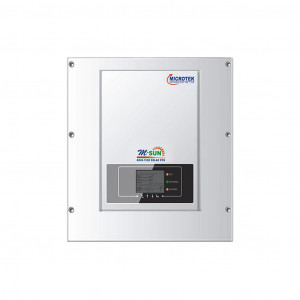

Microtek M-sun 11Kw (3Ph) On-grid Solar Inverter

Microtek M-sun 11Kw (3Ph) On-grid Solar Inverter

Brand: Microtek

Category: Solar Inverter

Approximate Price

₹ 80,967

plus 12% GST

Solar Business Get Additional Discount

Install Solartrade App Today

Solartrade app

Become Our Channel Partner

Grow Your Solar Business or Start New

Product Description

Microtek M-SUN SOLAR GRID-TIED SYSTEM is a system with Grid-Tie functionality.

MPPT Based Technology Grid Tie Wall mounted Solar System that converts Solar Energy into Electricity.

  • Max 98.3% Efficiency, Real Time Precise MPPT algorithm for BEST Performance.
  • Plug & Play Easy Installation & Maintenance, IP65 for Free Site Selection.
  • Big Size LCD Display, Interface Selection, RS485 for System Monitoring.
  • Intelligent Grid Management, Reactive Power Capability & Self Power Reducer when Over Frequency. Remote Active/Reactive Power Limit Control.
  • SD Card inside for Data Storage upto 25 Years.

Technical Description

INPUT (DC)

Max.Input Power/Number of MPPT 12000W/2MPPT
Max.Input Voltage/Start-up I/P Voltage/Rated I/P Voltage 1000V/180V/600V
MPPT Voltage Range 160V~960V
Full Load DC Voltage Range/Max.Input Current per MPPT 480V~850V/11A

OUTPUT(AC)

Rated Power/Max.AC Power/Max.AC Output Current 10000VA/11000VA/15.9A Per Phase
Nominal Grid Voltage/Grid Voltage Range 3/N/PE,220/380V or 3/N/PE,230/400 or 3/N/PE,240/415V
Nominal Frequency/Grid Frequency Range Nominal:50Hz/60Hz, Grid:50Hz,+/- 5Hz (According to Local Standard)
THDi/Power Factor/Grid Connection <3%/1(Adjustable±0.8)/Three Phase
Power Limit Export Zero Export or Adjustable Power Limit Export (Optional)

EFFICIENCY

Max.Efficiency 98.30%
MPPT Efficiency >99.9%
PROTECTIONS DC Reverse Polarity Protection,DC Switch,MOV:Type III standard,Anti-islanding,RCMU and Ground Fault Monitoring
Degree of Protection IP65
Topology Transformerless

COMMUNICATION

Standard Communication Mode/Operation Data Storage RS485,Wi-Fi(Optional),GPRS(Optional),SD Card
AMBIENCE Operating Temperature -25 ͦC ~+60 ͦC/Acoustic Noise : <29dB
PARAMETERS Allowable Relative Humidity range : 0 to Max 95% no condensing, Max.Operating Altitude:2000m
DIMENSIONS(LxWxH)in mm 483x452x200
WEIGHT 22 Kgs
