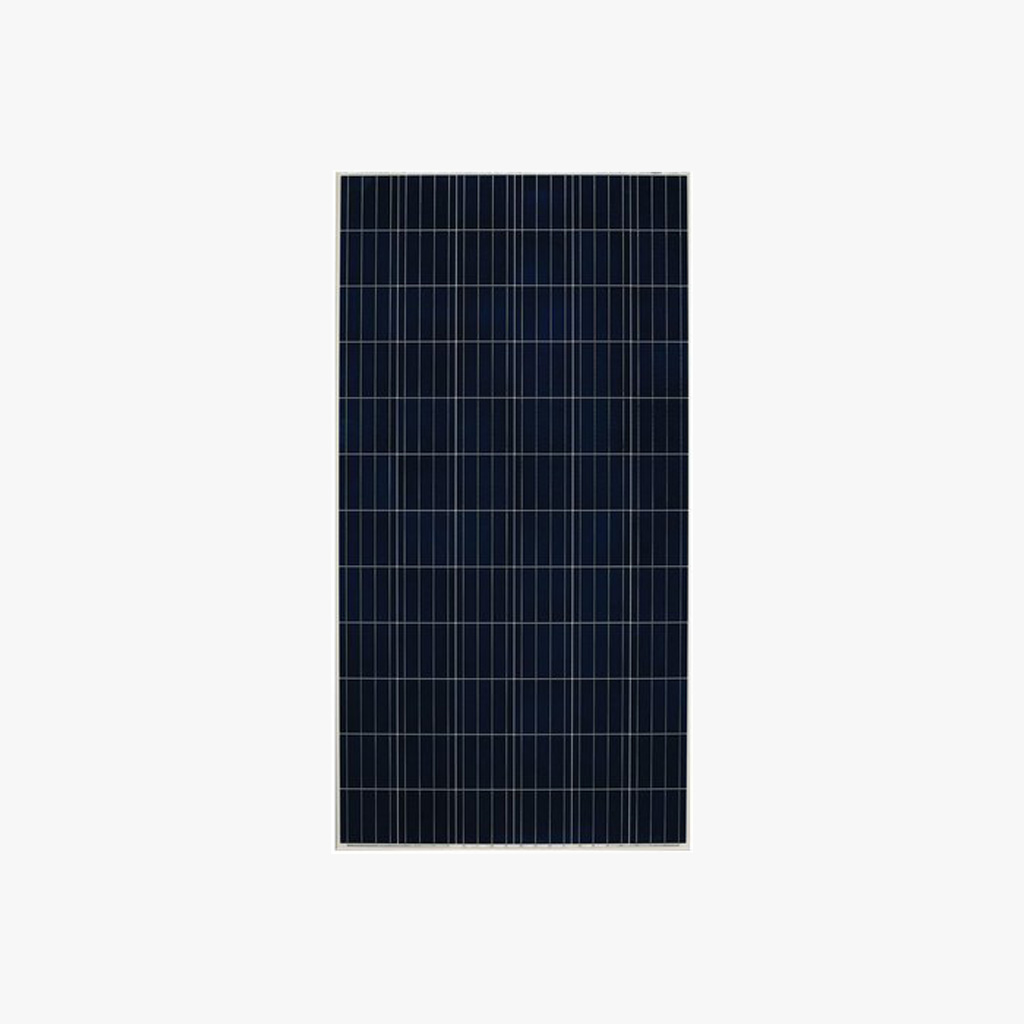

Saatvik Solar Panel 335 Watt - 24 Volt Poly Module (Pack of 9)

Saatvik Solar Panel 335 Watt - 24 Volt Poly Module (Pack of 9)


Solar Panel


Price From

INR 71000

Select Quantity


Proposal Maker

Lifetime FREE

For Solar Installers / EPC Only


Saatvik Green Energy (P) Ltd





Product Description


• 15-year product warranty
• High-efficiency PERC cells optimized for low irradiance, for decreased ohmic losses and increased yield
• Tempered 3.2 mm safety glass for optimal mechanical stability and transparency
• High-temperature resistance (tested at 105° C for 200 hours)
• For installations at an altitude up to 7000 m
• Maximum resistance against hail (83 km/h)
• Quality control with electroluminescence (EL) tests on each module

Electrical Characteristics SGE330-72P
Maximum Power at STC (Pmax) 335 W
Optimum Operating Voltage (Vmp) 36.70 V
Optimum Operating Current (Imp) 9.01 A
Open Circuit Voltage (Voc) 45.35 V
Short Circuit Current (Isc) 9.29 A
Module Efficiency 16.92%
Operating Module Temperature -40 °C to +85°C
Maximum System Voltage 1000/1500 V DC (IEC)
Maximum Series Fuse Rating 15A
Power Tolerance 0/+5W


Maximum Power at NOCT (Pmax) 238 W
Optimum Operating Voltage (Vmp) 34.40 V
Optimum Operating Current (Imp) 6.92 A
Open Circuit Voltage (Voc) 41.70 V
Short Circuit Current (Isc) 7.46 A

Temperature Characteristics

Nominal Operating Cell Temperature (NOCT) 46±2°C
Temperature Coefficient of Pmax -0.3778%/°C
Temperature Coefficient of Voc -0.289%/°C
Temperature Coefficient of Isc +0.0529%/°C

Module | Mechanical Data

Specification Data
Cell Type Poly-crystalline, 72 Cells (6x12)
Dimensions 1970x990x35 mm
Weight 21 kgs
Front Cover 3.2 mm Tempered Glass
Cell Encapsulation EVA
Backsheet Composite Film
Frame Material Silver Anodized Aluminium Profile,
(black frame on request)
J-Box IP67, 3 diodes
Cable 1.2 Meters, 4 mm2
Connectors MC4 Compatible ConnectorIEC/UL Certified
30x1 Pieces, 650 kg
(quantity and weight per palette)
Module Pieces
per container
720 pieces (40* HQ)
