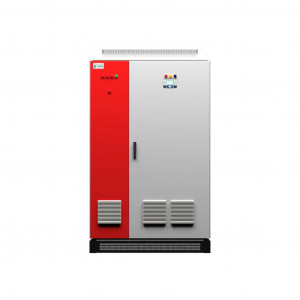

Statcon 100 KW/ 360V Three phase MPPT based Hybrid PCU

Statcon 100 KW/ 360V Three phase MPPT based Hybrid PCU

Brand: Statcon

Category: Solar Inverter

Approximate Price

₹ 998,574

plus 12% GST

Solar Business Get Additional Discount

Install Solartrade App Today

Solartrade app

Become Our Channel Partner

Grow Your Solar Business or Start New

Product Description

  • Adaptive Algorithm for High Efficiency MPPT Solar Charger.
  • High Efficiency DC-DC Power Conversion.
  • Low Current Distortion & High PF During Charging Mode.
  • Multi Stage Battery Charging Including Temperature Compensation.
  • Fast Changeover Time, High Inrush Current & Current Sharing Between Solar & Ac When Present.
  • Auto DG Start-Stop As Per Requirement.
  • Graphical Display with Keypad: Its Indicate At Mains On, Alarm On, Buzzer Mute, GPRS Mounting of All Parameter & Inbuilt Data Logging.

Technical Description

Brand Statcon
Operating Temperature

0 to 50 deg C


Three Phase


Data Center, Site Office, Farm Houses, Telecom Shelters, Petrol Pumps, Pipe Lines, Hospitals & Apartments

Nominal Voltage

360 V

Input Voltage

230 V ±15%

Battery Type

Supported: Lead Acid Tubular, VRLA & Ni-Cd


1120 kg

Input Frequency

50 Hz ±5%




Peak Efficiency: >85%


Maximum Panel Voltage: 600 V

Degree of Protection


Rated Power

Range: 40 kVA

Output Voltage

Max. Output Voltage: 230 V ±15%


100 kW

Output Frequency

50 Hz ±5%
