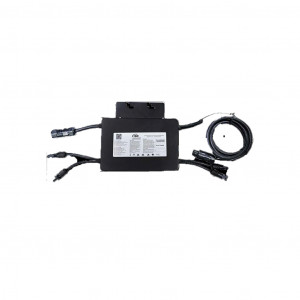

SunSights MSI700 Solar Micro Inverter

SunSights MSI700 Solar Micro Inverter

Brand: SunSights

Category: Solar Inverter

Approximate Price

₹ 14,700

plus 12% GST

Solar Business Get Additional Discount

Install Solartrade App Today

Solartrade app

Become Our Channel Partner

Grow Your Solar Business or Start New

Product Description

Distributed Architecture
 DC-to-AC Conversion at the Module Level
 No Single Point of Failure
 Pure Sine-Wave
 Smart-Grid Ready
 Wifi and GPRS Monitoring Accessible
through iOS and Android Applications
 Highest Warranty of 12 Years,
with a 12-Year Upgrade Option

Reliable Product Range
 Dynamic Feed-in-Control for
‘Zero Export’ Intelligence
 IP67 Rated Protection (Weatherproof)
 Easy Installation
 Safer Solar System
 Scalable in Runtime
 Module-wise Remote Monitoring
and Controlling Ability
 Support of Ground Fault Detection

More Energy Generation than the Traditional Systems

Islanding Protection

99.9% Efficiency using MPPT Controller

Compatible with Panels of different ratings

Electrical Parameters can be remotely changed based on the Grid Conditions

Technical Description

INPUT DATA (DC)

Recommended Module Power (STC) 230W-400W
Module Compatibility Four 60 or 72 Cell Panels
Maximum Input Voltage 60Vdc
MPPT Voltage Range (Full Power) 27-45Vdc
Operating Voltage Range 22-55Vdc
Maximum DC Short Circuit Current 30Adc (15Adc per MPPT)
Maximum Input Current 19.4Adc (9.7Adc per MPPT)
Number of MPPT 2

OUTPUT DATA (AC)

Peak Power 700W
Maximum Continuous Output Power 700W
Maximum Continuous Output Current 2.92Aac
Nominal Voltage 230Vac
Nominal Operating Voltage Range 212-264Vac
Nominal Operating Frequency 50Hz
Nominal Operating Frequency Range 48-52Hz (±3%)
Maximum Number Per Branch Circuit 5
Power Factor >0.95

EFFICIENCY

Peak Inverter Efficiency 97.00%
CEC Weighted Efficiency 96.00%
Static MPPT Efficiency 99.90%
Total Harmonic Distortion <4%

MECHANICAL DATA

Operating Ambient Temperature Range -40°C to 65°C
Dimensions 26cm x 18cm x 3.1cm (10.2in x 7.1in x 1.2in)
Weight 3.5kg (7.7lbs)
Cooling Convection (No Fan Required)
Enclosure Environmental Rating IP67 Rated (NEMA 6)

OTHER FEATURES

Communication 6 LowPAN
Monitoring Supports Ethernet/Wifi/GSM
Protect Function Overload, Short Circuit,Over/Under Voltage,Over Temperature
Integrated Grounding Meets NEC 690.35- Ground Fault Protection Internal to Micro Inverter
Compliance

IEC 60068-2-1:2007 IEC 60068-2-2:2007 | IEC 60068-2-14:2009 IEC 60068-2-30:2005 | IEC 61683:1999 IEC 62116:2008 | IEC 61000-6-1:2016 IEC 61000-6-2:2016 | IEC 61000-6-3:2011 IEC 61000-6-4:2018
